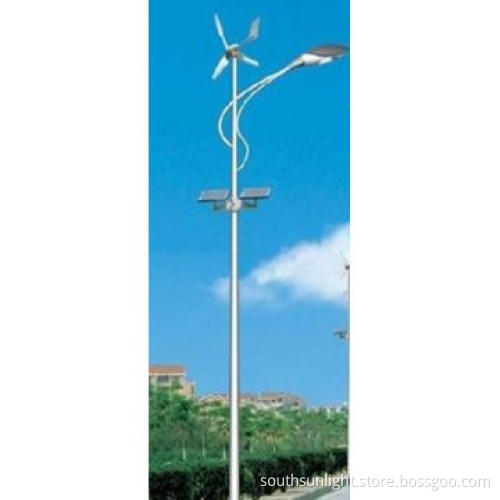

8 meter solar and wind hybrid solar street lighting
  • 8 meter solar and wind hybrid solar street lighting
8 meter solar and wind hybrid solar street lighting

8 meter solar and wind hybrid solar street lighting

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Energy Wind-solar Hybrid
Voltage 12V
Application Highway, Highway Lighting, Square Lighting
Light Source LED
Power Supply Wind-solar Hybrid
IP IP65

Detail Description

8 meter solar and wind hybrid solar street lighting
 parameter:
Components parameter description quantity（pcs） price(USD) note
solar panel 100W/38.4 composed of a piece of 100W monocrystalline solar cell, high convertion, lifespan up to 25 years, passed throught TUV certifation                                                                                                                                     1 100.00  3 years warranty
wind turbine DC12V 300W Start-up wind speed: 2m/s; Security wind speed: 40m/s; Number of blade: 6pcs; Rotor diameter:1140mm; lifespan: 15 years, high efficiency, good balance, power output steady 1 213.33  1 year warranty
Controller(with city power module) DC12V 600W  24V 600W，can control solar and wind power, with city power hybrid, intelligent solar and wind street light controller,Three time power regulating function，with liquid-crystal display，working datas storing function, High precision current detection technology PWM modulation LED drive circuit，adopt time and light control and Constant current output, Has the counter-attack, receive, reverse filling, flow, discharge, overload, short circuit protection function. lifespan: 10 years 1 108.33  1 year warranty
Lighting source               DC12V 56W adopt high efficiency long lifespan American LED chips                                                      1. power: 56W
2. lifespan:≥50000h
3. IP:IP65
4. Luminous flux:5600LM
4. color temperature:2700K-7000K
6. color rendering index:50-70RA		 1 113.33  2 years warranty
Battery 12V,100AH 1pc of 12V 100AH 12V100AH free maintenance gel battery, with high capacity reserve, Charge and discharge without salt fog, strong thermophilic, long lifespan,
5-8 years, Self-discharge is small, completely free maintenance etc. (including buried box)
                                                                                                                                                                                                                                        		 1 183.33
Waterproof buried box Engineering PP 1 13.33
Lamp post reconstruction materials need to increase brackets for solar panels and Wind power tower; the length should be customized according to the project post.(Because we haven\'t seen the outlook of the post, so this price only for reference.)    100.00  3 years warranty
Working time Make full use of green clean energy, realize zero power consumption, zero emissions, zero pollution; The products are widely used in road, landscape, community lighting, etc; Has the need not laid transmission line, do not need to excavation road buried pipe, electrical energy consumption etc., Can guarantee the continuous bright light
Ex-works $831.65

Additional Information

Payment Terms T/T
Minimum Order 1set
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details Goods would be ready within 7 working days after confirmation of deposit.
FOB Port Shenzhen
Loading Info shipped by sea, by express
Packing Info safe and standard export packing
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
