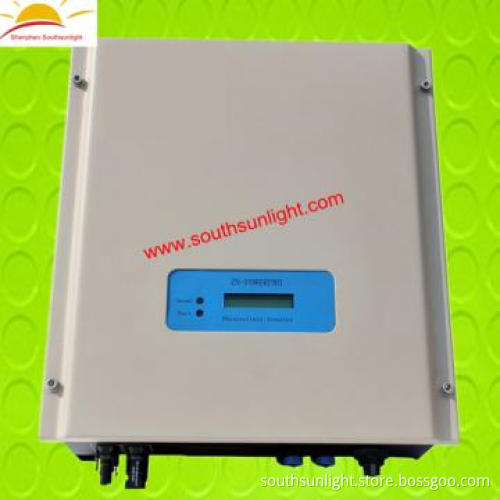

2012 Hot sell 3KW grid-tied inverter

3KW
DC parameter	Max. DC Voltage	500VDC
Min. Starting voltage	150VDC
Full load voltage range	250～450VDC
Working MPPT voltage range:	150～450VDC
Max. DC Watts	3500Wp
Max. Input current	14A
Suggested open-circuit voltage of PV array	450VDC
AC parameter	Rated output power	3000W
Max. AC output current	16.5A
Rated grid voltage	230Vac
Running range of grid\'s voltage	184～264.5VAC(VDE) 201～268VAC(SAA)
Rated grid\'s frequency	50Hz
Allowed grid\'s frequency	47.5～50.2Hz(VDE) 45～55Hz(SAA)
The total current waveform distortion rate	<3%(rated power)
Dc current component	<0.5%(rated output current)
Power factor	≥0.99(rated power)
System	Max efficiency	97.5%
Europe efficiency	96.5%
MPPT tracking efficiency	99.5%
Protection functions	Input undervoltage or not	yes
Hold time of output undervoltage	≦0.2 sec.
Output under-frequency and protection time	≦0.2 sec.
Reverse polarity protection	yes
Counter-attack island protection	Active anti island
Short circuit protection	yes
Environment	Temperature of working environment	-20℃～+60℃(No direct sunlight)
Temperature range of storage environment	-40℃～+65℃
relative humidity (RH)	≤90%, No gel
	≤2000m; If >2000m ，it should be derated according to GB/T 3859.2.
Others	Noise	≤35dB horizontal 1m
Automatic turn on/turn off	The inverter should turn on/turn off automatically according to the sunshine condition of sunrise and sunset.
Night loss	0W
SS (soft start)	When the inverter is starting, the output power should be increased relaxedly, that is to say the rate of change of output power is adjustable, and it\'s not over 1000W/s. The output current has no impact.
communication	RS485
IP grade of the outer skin	IP65(outdoors)
MTBF	≥300Khrs(min.) MIL-HDBK-217F(25℃)
Overall size	Lengthwidthheight≤ 416mm × 378mm× 136.4mm

Additional Information

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	Goods would be ready within 7 working days after confirmation of deposit.
FOB Port	Shenzhen
Loading Info	by sea, by express
Packing Info	safe and standard export packing
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
