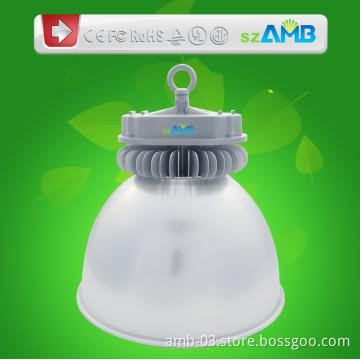

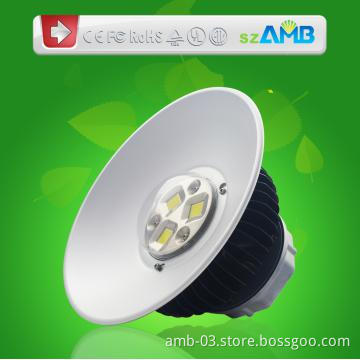

HLG model Meanwell driver 120W LED high bay, 80000hours life span

HLG model Meanwell driver 120W LED high bay, 80000hours life span, 6 kinds of reflector for customers\' different using, LED highbay lighting, LED high bay lighting, LED high bay, LED highbay, Highbay LED lighting, LED high bay lighting
Copper cooling system: Working temp less than 60 celsius
Best LED in the world (60mil): 120-130lumen/watts
Meanwell LED driver: 5years warranty time AC90-305V
Different housing: 60 degree, 120 degree with both Aluminum, acrylic housing
Full color temp range, even with mixture color
Different size: 80W, 100W 150W 180W 200W 200W 250W 300W
ETL/CE (EMC, LVD)/RoHS/FCC/UL Approval
Isolated driver. Remote reach IP65 (water), users can be used drench side

Features:
1 Light source: Epistar 60mil LED-best model at the moment, the bigger size the better quality, but most other factories use 45mil even 38mil LED.
2 Low power consumption
3 High luminosity and long life time
4 Environmentally friendly
5 Excellent opto-electronic performance
6 Optimized heat fins for natural convection
7 High-efficiency cooling system
8 High-efficiency LED power driver: From Taiwan Meanwell which is 5years warranty time
9 High light transmission PC protection cover

Typical Applications:
1 Warehouse Lighting
2 Garage Lighting
3 Workshop Lighting
4 Public Lighting
5 Parking Lot Lighting
6 Walkway Lighting
7 Other open spaces lighting
Product Specification
Parameter Description
Power 120W
Input Voltage AC85~305V 50/60Hz
Light eFficiency >100LM/W
Power Factor >0.98
Total harmonic index >20%
Flux 12000LM
LED lifetime >50000H
Operation temperature -30oC~+50oC
Light Source High Power LED
Optical Lens PMMA Optical Lens1
Optical Design Special Batwing and Asymmetrical Light Patterns
Beam Color Typical 6000K
Color Rendering Index Typical 70
Housing PC
Weight 7.9kg
Installation Tube Diameter (OD2) 600 mm (23.6\")
IP Rating IP 54 for Light Engine & Power Supply
Note:
1. PMMA optical Lens can not be cleaned by organic or acidic solvent. Lens damage caused by
Organic or acidic solvent may lead to decrease of light output.
2. OD: Outer diameter
Illumination of the test product:
Test height (Unit: M) Date (Unit: Lux)
`
Notes:
1.60 or 120-degree angle of projection edges of different heights
2. Test environment:
Room temperature 30 degrees
Humidity: 70%
Voltage: AC85-305V 50Hz
