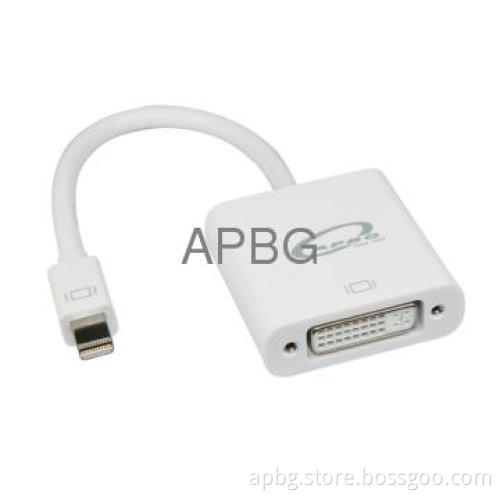

MINI DP TO DVI 24+5 Female adapter cable
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Detail Description
MINI DP TO DVI 24+5 Female
Specifications:
1. Connector:20-pin 30u male,shell nickel plated,and 24k gold pins 15u
2. Cables:UL20276(1P+D+AL+MYLAR)*5+5C+AEB,OD:7.3MM,30AWG/28AWG available
3. Voltage:DC 300V 2M ohm/10ms
4. Contact resistance:2ohm Max
5. All materials ROHS compliant
6. Length:3FT,6FT,12FT,15FT
Features:
1. Smaller connectors,easier set up,thinner cables,fewer cables,higher color depths,higher refresh rates,higher resolutions,ubiquitous display connectivity-all features that displayport delivers on.
2.Provides data rates up to 1080p resolution with digital video and audio in one cable
3.Supports HDMI,DVI and LVDS displayport componets.
4.Supports HDCP(High-difinition content protection)
5.Supports greater than OXGA resolution and greater than 24-bit color depths.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | NO |
| FOB Port | Shenzhen |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
