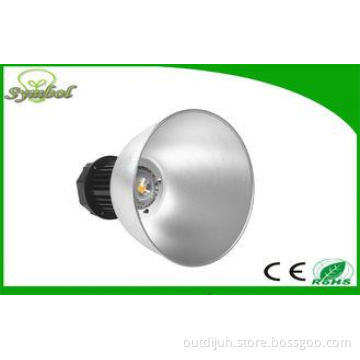

CRI > 80 IP20 200 W LED High Bay lights 18000lm For Factory Lighting
Quick Detail:
- The Product Specifications of LED High Bay
- Item Number: XBGK020-200W
- Power Supply Brand: MEAN WELL
- Type: LED High Bay Lights
- Lamp Power (W): 200w
- LED Quantity: 1PC
- Input Voltage (V): AC90-264V / 50Hz—60Hz
- Carton Box Size ( Lamp body) : 30*30*41.5cm (1PCS/Carton Box)
- Total Weight Outer box(lampbody): 11.5KG/CTN
- Carton Box Size with Fiber Board( Lampshade): 54X54X55CM (50PCS / Carton Box)
- Total Weight Outer box with Fiber Board ( lampshade)
Description:
Chimney
Made of high-punity aluminum,high reflective rate,wide light beam angle,unform lighting intensity. We have beam angle 45,90,120degree for choice.
Top
Adopt high quality die-casting aluminum,IP42 at the connector, wire length: 1.5M,each the high bay lamp has buckles and can directly suspend in place of the desired illumination. Quick installation, easy maintenance.
LED Chip
Adopt high performance 45mil Bridgelux COB LED, high color rendering index, high stability and low light fades, superbrightness and energy saving.
Power driver
Adopt Meanwell driver, warterproof, high reliability, high efficiency, high PF, low operating temperature.
Wire diameter
Silicon wire diameter is 2.0MM, connecting the LED chip and power driver, fire rated and can resist 180degree high temperature.
Applications:
the factory,the workshop, market sports stadiums , and other large venues and so on
Specifications :
|
Item Number |
XBGK020-200W |
||
|
Power Factor |
>0.95 |
||
|
Power Efficiency |
＞93% |
||
|
Total Harmonic Distortion |
≤20%
|
||
|
LED Sources |
Brigelux 45mil
|
||
|
LED Power Consumption
|
200w |
||
|
Total Power Consumption
|
214w |
||
|
Average illuminance |
Height: 4m |
208lux |
|
|
Height: 7m |
68lux |
||
|
Height: 10m |
33.4lux |
||
|
Beam Angle |
45/90/120 |
||
|
Luminous Flux |
>22000lm(bare LED)
|
||
|
Light Distribution |
Symmetrical/Round Light Spot
|
||
|
Light Design |
LED+reflector |
||
|
LED Junction Temperature
|
≤80℃ |
||
|
WorkingTemperature |
-40℃~+45℃
|
||
|
IP rating |
IP42 |
||
|
Luminous efficiency |
＞110lm/w(bare LED) |
||
|
IP rating |
IP42 |
||
|
Lifetime |
>50000Hrs |
||
|
Power line |
0.75mm² three-core wire
|
||
|
Wires |
L: live wire |
||
|
N: neutral wire |
|||
|
E: Earth wire |
|||
|
Color |
Cool white / Warm white / Natural white / Pure White/ Red / Green /Blue /Yellow |
||
|
Color Temperature |
Warm White
|
2700-3200K |
|
|
Pure White |
6000-6500K |
||
|
Cool White |
10000-12000K |
||
|
Color render index |
Warm White |
Ra＞85 |
|
|
others |
Ra>75 |
||
|
LED initial luminous flux |
Warm White |
19000±3%lm |
|
|
Pure White |
22000±3%lm |
||
|
Cool White |
20000±3%lm |
||
|
Color of Housing |
Black and silver |
||
|
Warranty |
3Years |
||
|
Certifications |
CE,ROHS |
||
Competitive advantages:
The lamp bead is encapsulate by us. Quality guaranteed and reasonable price,also good heat dissipation function ,foot wattage.
