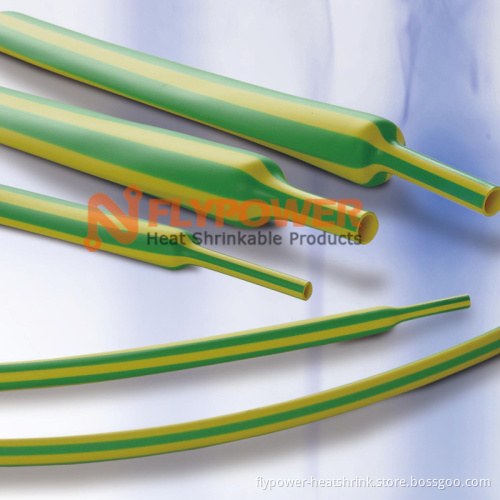

Yellow and Green Striped Flexible Flame Retardant Heat Shrink Tubing BH-2F(YG)
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 500 Meter
- Min. Order:
- 500 Meter
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000000m |
| Supply Ability: | 10000000m/month |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | SAE-AMS-DTL-23053/5 Class 1&3;Sony-SS-00259,RoHS |
| Transportation: | Ocean,Air |
Applications:
BH-2(YG) Yellow & Green Striped Heat Shrink Tubing is outstanding physical,chemicall and electrical properties
make it easily to install and identify to ground conductors. Free form environment harmful substance as PBB`s,
PBBO`s,PBBW`s and toxic heavy metal compounds in its components.
Features:
1) Flexible, flame retardant
2) Approvals: UL125°C VW-1 600V
3) Meet: SAE-AMS-DTL-23053/5 Class 1&3
4) Material: Meet Standard of Sony-SS-00259,RoHS
5) Minimum shrink temperature: 70°C
6) Minimum fully recovery temperature: 100°C
7) Operating temperature: -55°C ~+135°C
8) Standard color: Yellow & Green striped
Technical data:
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
14MPa |
|
Elongation at break |
ASTM D 2671 |
800% |
|
Tensile strength after aging at 175°C for 168 hrs |
ASTM D 2671 |
14MPa |
|
Elongation after aging at 175°C for 168 hrs. |
ASTM D 2671 |
350% |
|
Flammability |
UL 224 /VW-1 SAE-AMS-DTL-23053/5 |
Pass |
|
Heat shock (250°C / 4 hrs.) |
ASTM D 2671 |
No cracking |
|
Cold bend test (-55°C / 4 hrs.) |
ASTM D 2671 |
No cracking |
|
Dielectric strength |
ASTM D 150 |
22KV/mm |
|
Volume resistance |
ASTM D 876 |
1014Ω .cm |
|
Copper Corrosion |
UL 224 |
Pass |
|
Water absorption |
ASTM D 570 |
0.15% |
|
Chemical resistance |
SAE-AMS-DTL-23053/5 |
Pass |
|
Longitudinal shrinkage |
UL 224 |
0±5% |
|
Eccentricity |
UL 224 |
30% |
Product Dimensions 2:1(mm/inch):
|
Normal Size (mm) |
As supplied (mm) |
After recovered (mm) |
Standard Length (m/spool) |
|
|
Inside diameter (mm) |
Inside diameter (Max.) |
Wall thickness (Min.) |
||
|
3/64 |
1.2 |
0.6 |
0.33 |
200 |
|
1/16 |
1.6 |
0.8 |
0.36 |
200 |
|
3/32 |
2.4 |
1.2 |
0.44 |
200 |
|
1/8 |
3.2 |
1.6 |
0.44 |
200 |
|
3/16 |
4.8 |
2.4 |
0.56 |
100 |
|
1/4 |
6.4 |
3.2 |
0.56 |
100 |
|
5/16 |
8.0 |
4.0 |
0.56 |
100 |
|
3/8 |
9.5 |
4.8 |
0.56 |
100 |
|
1/2 |
12.7 |
6.4 |
0.65 |
50 |
|
5/8 |
16.0 |
8.0 |
0.69 |
50 |
|
3/4 |
19.1 |
9.5 |
0.80 |
50 |
|
1 |
25.4 |
12.7 |
0.90 |
50 |
|
11/4 |
31.8 |
15.9 |
0.90 |
50 |
|
11/2 |
38.1 |
19.1 |
1.02 |
50 |
|
2 |
50.8 |
25.4 |
1.02 |
50 |
|
3 |
76.2 |
38.1 |
1.20 |
30 |
|
4 |
101.6 |
50.8 |
1.30 |
30 |
-
