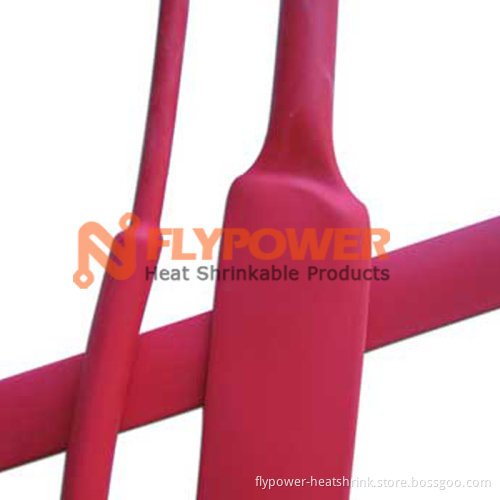

Environment Friendly Flexible Heat Shrink Tubing 2:1 BH-2(Z)
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 500 Meter
- Min. Order:
- 500 Meter
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000000m |
| Supply Ability: | 10000000m/month |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | UL 224, 125 VW-1 600V Sony SS-00259, RoHS |
| Transportation: | Ocean,Air |
Applications:
BH-2(Z) Specially designed formulation ensure the tubing to meet the standard of UL224 and CSA C 2.2. Free from
environment harmful substance as PBB's, PBBO's, PBBE's and toxic heavy metal compounds in its components, make it
meet the requirement of environment protection. In case of burning no Dioxin is produced. The properties of low shrinking
temperature, flexibility and superior mechanical strength make them widely used in the field of electronics, communication,
automobile etc.
Features:
1) Shrink ratio: 2:1
2) Low shrinking temperature
3) Ultra thin-wall, flexible, flame-retardant
4) Environment friendly, free from harmful substance
5) Widely used in the field of electronics, communication, automobile etc.
6) Meet: UL 224, 125°C VW-1 600V
Sony SS-00259, RoHS
7) Operating temperature range:
A) Operating temperature range: -55°C ~ 125°C
B) Minimum shrink temperature: 70°C
C) Minimum full recovery temperature: 100°C
8) Standard color: Black, Red, Blue, Yellow, Green, White (other colors available on request)
Technical data:
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
UL 224 |
-55 to +125℃ |
|
Tensile strength |
ASTM D 2671 |
>14MPa |
|
Ultimate elongation |
ASTM D 2671 |
400% |
|
Longitudinal shrinkage |
UL224 |
±5% |
|
Eccentricity |
ASTM D 2671 |
<30% |
|
Heat aging Tensile strength Ultimate elongation |
158℃/168hrs
|
12MPa >350% |
|
Flammability |
VW-1 |
Pass |
|
Dielectric strength |
IEC243 |
>20KV/mm |
|
Volume resistance |
IEC93 |
>1014Ω .cm |
|
Copper stability |
UL 224 |
Pass |
Product Dimensions (mm/inch):
|
Normal size (Inch) |
As supplied(mm) |
After recovered (mm) |
Standard Length (m/spool) |
||
|
Inside diameter (mm) |
Wall thickness (mm) |
Inside diameter (Max.) |
Wall thickness (Min.) |
||
|
3/64 |
1.6±0.2 |
0.18 |
0.60 |
0.33 |
200 |
|
1/16 |
2.0±0.2 |
0.18 |
0.80 |
0.36 |
200 |
|
3/32 |
3.1±0.2 |
0.25 |
1.20 |
0.44 |
200 |
|
1/8 |
3.7±0.2 |
0.25 |
1.60 |
0.44 |
200 |
|
3/16 |
5.2±0.3 |
0.25 |
2.40 |
0.51 |
100 |
|
1/4 |
6.8±0.3 |
0.25 |
3.20 |
0.56 |
100 |
|
5/16 |
8.8±0.3 |
0.30 |
4.00 |
0.56 |
100 |
|
3/8 |
10.7±0.3 |
0.30 |
4.80 |
0.56 |
100 |
|
1/2 |
13.7±0.3 |
0.30 |
6.40 |
0.65 |
50 |
|
5/8 |
16.7±0.3 |
0.35 |
8.00 |
0.69 |
50 |
|
3/4 |
20.5±0.3 |
0.40 |
9.50 |
0.80 |
50 |
|
1 |
26.5±0.3 |
0.45 |
12.70 |
0.90 |
50 |
|
11/4 |
33.5±0.4 |
0.45 |
15.90 |
1.02 |
50 |
|
11/2 |
41.0±0.4 |
0.50 |
19.10 |
1.02 |
50 |
|
2 |
52.0±0.4 |
0.50 |
25.40 |
1.14 |
50 |
|
3 |
82.0±0.4 |
0.55 |
38.10 |
1.27 |
30 |
|
4 |
104.0±0.4 |
0.55 |
50.80 |
1.40 |
30 |
|
5 |
126.0±0.4 |
0.55 |
63.50 |
1.50 |
15 |
|
6 |
152.0±0.4 |
0.55 |
76.00 |
1.50 |
15 |
Feet spool lengths are available subject to requirement .
Normal Size
(mm)
As supplied(mm)
After recovered (mm)
Standard length
(m/spool)
Inside
diameter
(mm)
Wall thickness
(mm)
Inside diameter
(max)
Wall thickness
(min)
Φ1.0
1.5±0.2
0.18
0.50
0.33
200
Φ1.5
2.0±0.2
0.18
0.75
0.36
200
Φ2.0
2.7±0.2
0.25
1.00
0.44
200
Φ2.5
3.1±0.2
0.25
1.25
0.44
200
Φ3.0
3.7±0.3
0.25
1.50
0.44
200
Φ3.5
4.0±0.3
0.25
1.75
0.44
200
Φ4.0
4.7±0.3
0.25
2.00
0.44
200
Φ5.0
5.6±0.3
0.25
2.50
0.56
100
Φ6.0
6.8±0.3
0.25
3.00
0.56
100
Φ7.0
7.7±0.3
0.25
3.50
0.56
100
Φ8.0
8.8±0.3
0.30
4.00
0.56
100
Φ9.0
9.8±0.3
0.30
4.50
0.56
100
Φ10
10.7±0.4
0.30
5.00
0.56
100
Φ11
11.7±0.4
0.30
5.50
0.56
100
Φ12
12.7±0.4
0.30
6.00
0.56
50
Φ13
13.7±0.4
0.30
6.50
0.65
50
Φ14
14.7±0.4
0.35
7.00
0.69
50
Φ15
15.7±0.5
0.35
7.50
0.69
50
Φ16
16.7±0.5
0.35
8.00
0.69
50
Φ18
19.0±0.5
0.40
9.00
0.80
50
Φ20
21.4±0.5
0.40
10.00
0.80
50
Φ22
23.4±0.6
0.45
11.00
0.80
50
Φ25
26.5±0.8
0.45
12.50
0.90
50
Φ28
29.5±0.8
0.45
14.00
0.90
50
Φ30
31.5±0.8
0.45
15.00
0.90
50
Φ35
36.5±0.8
0.50
17.50
0.90
50
Φ40
42.0±0.8
0.50
20.00
1.00
50
Φ50
52.0±0.8
0.50
25.00
1.00
50
Φ60
62.0±1.0
0.50
30.00
1.00
30
Φ70
72.0±1.0
0.50
35.00
1.20
30
Φ80
82.0±1.0
0.55
40.00
1.20
30
Φ100
102.0±1.0
0.55
50.00
1.30
30
Φ125
126.0±1.0
0.55
60.00
1.30
15
Φ150
152.0±1.0
0.55
75.00
1.30
15
Special size, cut pieces are available on request.
-
