Military Standard Heat Shrink Identification Marker Sleeves BH-AMS
Application:
Military standard, high temperature, oil resistant, heat shrink identification sleeve is made of cross-linked environmentally friendly polyolefin bombarded by high power electron beam with electronic accelerators to meet high endmarkets where highly reliable cable& wire identification is required.Vol Military standard, high temperature, oil resistant, heat shrink identification sleeve meets American military standard AMS-DTL-23053/6 with 2:1 and 3:1 shrink ratio available on your request.
Vol Military standard high temperature oil resistant heat shrink identification sleeve boasts excellent oil resistance and is vey ideal for identifying cables and wires working in high temperature HC oil conditions, e.g JP-8 military purpose aviation kerosene. This product finds extensive applications in defence industries like aerospace, high speed rail, submarine, large vessels and architectural industry.
Features:
1) Resistant to high temperature fuel oil, lubricating oil and other organic solvents;
2) High temperature resistant, rated temperature: 135°C
3) Excellent oil resistant
4) Highly flame retardant, VW-1
5) ROHS compliant
6) High reliability, permanent identification
7) Heat sensitive, swift shrinking
8) Computerized printing, fonts at your disposal
Standards:
1) Meets: AMS-DTL-23053/6 NF F 00-608
2) Color Code Soundness:SAE-AS 81531,MIL-STD-202F/215J
Rated temperature:
1) Continuous operating temperature:-55°C~+135°C /-67°F ~+275°F
2) Min. shrink temperature:+120°C /+248°F
3) Full recovery temperature:+150°C~+200°C /+302°F~+392°F
4) Max. storage and transportation temperature.:≤+50°C /+122°F
Technical data:
Material
The
sleeving shall be fabricated from irradiated, thermally stabilized and flame
retarded modified polyolefin compound
Application
range
Military
industry; Aerospace & defense; Marine;
Operating
temperature range
-55---+135℃
Minimum
recovery temperature
+85℃
Maximum
storage temperature
+50℃
Shrink
ratio
2:1, 3:1
Color
White,
Yellow, other color is available if ordered
Printing
mode
Single
sided printing and Double sided printing formats available
Supplied
mode
Either

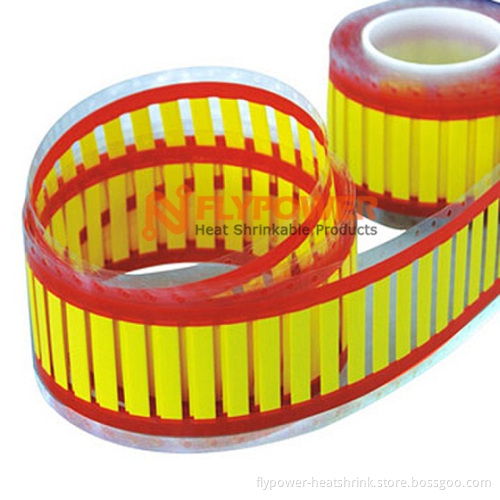

Continuous type or Ladder format type is available
Recommended
Printers
Either
Thermal transfer printer or Laser printer is OK.
Recommended
Ribbons
WO-80500BK resin
ribbon, Black, 100mm(width)*300m(length)
Product Dimensions (mm/inch):
BH-AMS Shrink ratio-2X:
|
Part Number |
As Supplied (mm) |
After Recovery(mm) |
|||
|
ID(D) |
Flatten Width(W2) |
Double Wall Thickness |
ID(d) |
Single Wall Thickness |
|
|
AMS-2X-1.6- |
2.00±0.20 |
3.7±0.3 |
0.48±0.10 |
≤0.79 |
0.45±0.06 |
|
AMS-2X-2.4- |
2.79±0.20 |
5.0±0.3 |
0.48±0.10 |
≤1.18 |
0.49±0.06 |
|
AMS-2X-3.2- |
3.64±0.23 |
6.3±0.4 |
0.48±0.10 |
≤1.59 |
0.51±0.06 |
|
AMS-2X-4.8- |
5.26±0.25 |
8.9±0.4 |
0.49±0.10 |
≤2.36 |
0.54±0.06 |
|
AMS-2X-6.4- |
6.92±0.28 |
11.5±0.4 |
0.50±0.10 |
≤3.18 |
0.56±0.06 |
|
AMS-2X-9.5- |
10.2±0.32 |
16.7±0.5 |
0.51±0.11 |
≤4.75 |
0.59±0.06 |
|
AMS-2X-12.7- |
13.5±0.36 |
21.8±0.6 |
0.52±0.11 |
≤6.35 |
0.60±0.07 |
|
AMS-2X-19- |
20.1±0.40 |
32.2±0.6 |
0.53±0.11 |
≤9.53 |
0.62±0.07 |
|
AMS-2X-25- |
26.7±0.45 |
42.5±0.7 |
0.55±0.12 |
≤12.7 |
0.63±0.07 |
|
AMS-2X-38- |
39.8±0.51 |
63.2±0.8 |
0.57±0.12 |
≤19.1 |
0.64±0.07 |
|
AMS-2X-51- |
53.0±0.56 |
83.9±0.9 |
0.58±0.13 |
≤25.4 |
0.64±0.08 |
|
AMS-2X-76- |
79.4±0.56 |
125.3±1.0 |
0.59±0.13 |
≤38.1 |
0.64±0.09 |
BH-AMS Shrink ratio-3X:
Part
Number
As
Supplied (mm)
After
Recovery(mm)
ID(D)
Flatten
Width(W2)
Double
Wall Thickness
ID(d)
Single
Wall Thickness
AMS-3X-1.6-
2.00±0.20
3.7±0.3
0.47±0.10
≤0.53
0.52±0.06
AMS-
3X-2.4-
2.79±0.20
5.0±0.3
0.47±0.10
≤0.79
0.57±0.06
AMS
-3X-3.2-
3.64±0.23
6.3±0.4
0.48±0.10
≤1.06
0.61±0.06
AMS-
3X-4.8-
5.26±0.25
8.9±0.4
0.49±0.10
≤1.59
0.67±0.06
AMS-
3X-6.4-
6.92±0.28
11.5±0.4
0.50±0.10
≤2.36
0.71±0.06
AMS-
3X-9.5-
10.2±0.32
16.7±0.5
0.52±0.11
≤3.18
0.77±0.06
AMS-
3X-12.7-
13.5±0.36
21.8±0.6
0.53±0.11
≤4.75
0.80±0.07
AMS-3X-19-
20.1±0.40
32.2±0.6
0.55±0.11
≤6.35
0.84±0.07
AMS-
3X-25-
26.7±0.45
42.5±0.7
0.56±0.12
≤8.47
0.86±0.07
AMS-
3X-38-
39.8±0.51
63.2±0.8
0.57±0.12
≤12.9
0.89±0.07
AMS-
3X-51-
53.0±0.56
83.9±0.9
0.57±0.13
≤17.2
0.90±0.08
AMS-
3X-76-
79.4±0.56
125.3±1.0
0.57±0.13
≤25.8
0.92±0.09
