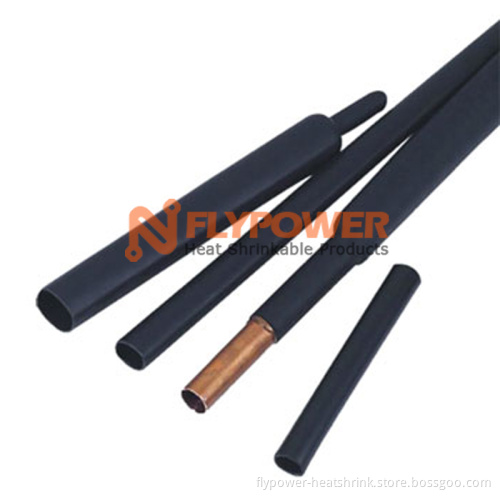

Dual Wall Adhesive-Lined Heat Shrink Tubing For Automative Pipe Protection BH-5(2000)
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 200 Meter
- Min. Order:
- 200 Meter
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000000m |
| Supply Ability: | 10000000m/month |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air |
Applications:
BH-5(2000) Specially designed for protection of automotive metal pipes and fuel lines against environment damages. This dual wall frame can effectively protect the pipes against any kinds of damages caused by vibration, friction , corrosion and thus improve the reliability of these pipes.
Features:
1) Designed from cross-linked polyolefin material
2) High corrosion resistant and excellent oil resistance
3) Used to protect automotive brake and fuel line against environment damage
4) Approvals / Specifications: CE
5) Operating temperature: -55°C ~+105°C
6) Minimum fully recovery temperature: 120°C
7) Size: 3.5mm~10mm
8) Standard color: Black
Product Dimensions (mm/inch):
|
Order ref. number |
Standard pipe diameter |
As supplied (mm)
|
After recovered (mm)
|
Standard length (m) |
|||
|
(inch) |
(mm) |
Inside diameter (min.) |
Inside diameter (Max.) |
Wall thickness (mm) |
Adhesive Thickness (mm)
(nom.) |
||
|
BH-5(2000)-5 |
1/8 |
3.50 |
5.50 |
3.30 |
1.00 |
0.20 |
200 |
|
BH-5(2000)-6 |
3/16 |
4.76 |
6.50 |
4.60 |
1.00 |
0.20 |
200 |
|
BH-5(2000)-8 |
1/4 |
6.35 |
8.50 |
6.00 |
1.00 |
0.20 |
100 |
|
BH-5(2000)-10 |
5/16 |
8.00 |
11.50 |
7.00 |
1.00 |
0.20 |
100 |
|
BH-5(2000)-15 |
3/8 |
10.00 |
15.00 |
9.50 |
1.00 |
0.20 |
1 |
