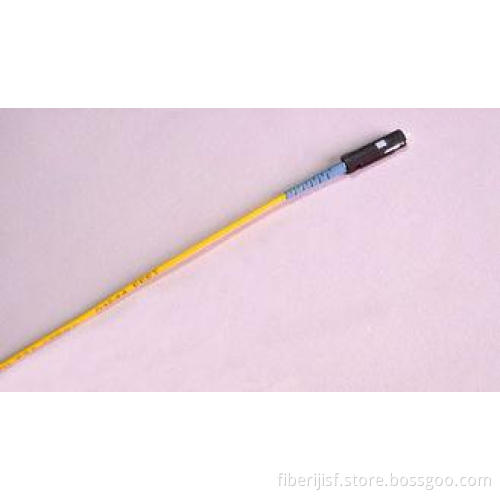

MU Fiber Optic Connector,Single mode&multimode
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Low Insertion Loss and Return Loss MU Fiber Optic Connector for Data Processing Networks
Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
MU looks a miniature SC with a 1.25mm ferrule.
Feature:
Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment
Availablity:
-MU connectors are small form factor (SFF) connectors that provide superior single mode or multimode optical performance. MU connectors are approximately half the size of a standard SC connector and feature a push-pull SC latching mechanism. In addition, MU connectors are feature low insertion losses, long-term reliability; and, repeatable performance characteristics.
Mechanical Drawings:
Specifications:
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
＜0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
＞25dB |
|
Insert-pull test |
1000(times) ＜0.2dB |
|
|
Operating temperature |
-40℃~ +80℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: ＜1um |
127um concentricity deviations: ＜3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Application:
