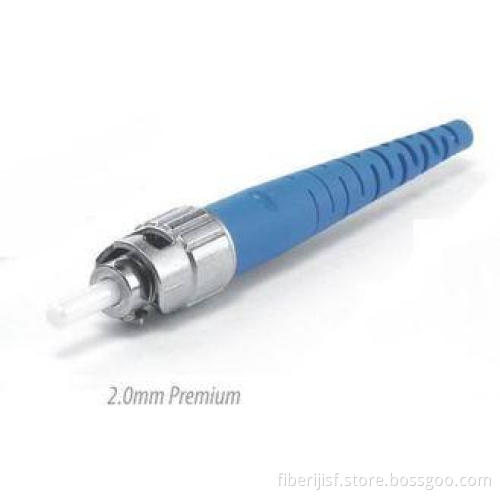

Free-floating Ceramic Ferrule ST Fiber Optic Connector for Optical Distribution Frame
Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.
Feature:
Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment
Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-PC and APC are available
Mechanical Drawings:
Specifications:
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
＜0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
＞25dB |
|
Insert-pull test |
1000(times) ＜0.2dB |
|
|
Operating temperature |
-40℃~ +80℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: ＜1um |
127um concentricity deviations: ＜3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Application:
