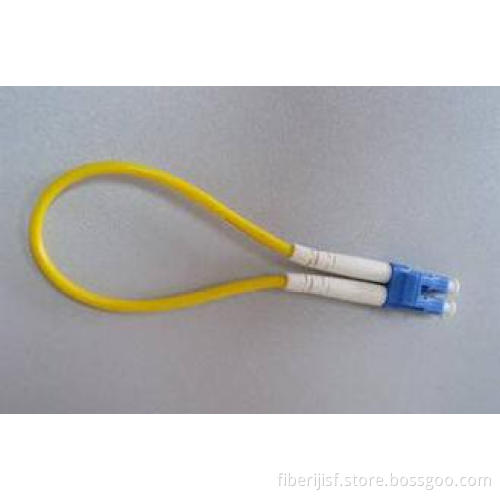

LC Loopback single-mode Fiber Optic Patch Cord

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

LC Loopback single-mode Fiber Optic Patch Cord
Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen

2.Video transmission , Data transmission

3.Active Device Termination

4.Premise Installations

5.Telecommunication and Data processing Networks

6.Industrial, medical & military

7.Systems Integration for Long Haul, Metro and Access Network

Features:
Simplex or duplex
PC or APC end-face finishing
Singlemode or Multimode
3.0mm, 2.0mmor 0.9mm
Compliant with Telcordia GR-326-CORE specification
Specifications

Parameters	Test Condition	Value (dB)
Parameters	Test Condition	Multimode	Singlemode
Insertion Loss	0.85/1.3um or 1.31/1.55um	≤0.3	≤0.3
Return Loss	0.85/1.3um or 1.31/1.55um	≥35	≥50 (APC≥60)
Interchangeability	Connect Randomly	＜0.2	＜0.2
Vibration	5~50Hz, 1.5mm Amplitude	＜0.1	＜0.1
Tensile Strength	0~15Kgf (0.9mm Exception)	＜0.1	＜0.1
High Temperature	+85℃, During 100 Hours	＜0.2	＜0.2
Low Temperature	-40℃, During 100 Hours	＜0.2	＜0.2
Temperature Cycle	-40℃~+85℃, during 5 Cycles	＜0.2	＜0.2
Humidity	+25℃~+65℃, 93%R.H, 100 hours	＜0.2	＜0.2
