Screw-thread coupling mechanism single or duplex mode available DIN Fiber Optic Patch Cord

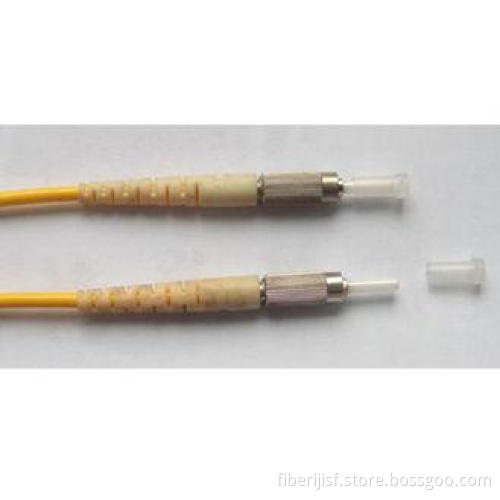

DIN Fiber Optic Patch Cord
DIN fiber optic patch cord is a fiber optic cable used to attach one device to another for signal routing.
Features & Availabilities
Screw-thread coupling mechanism
Singlemode and multimode available
PC and APC polishing available
Interferential parameters available
Hybrid patch-cords are available upon request
Pigtail available
Application:
Specifications
|
Insertion loss |
Singlemode |
PC≤0.3dB |
UPC≤0.2dB |
APC ≤0.3dB |
|
Multimode |
PC≤0.3dB |
UPC≤0.3dB |
APC ≤0.3dB |
|
|
Return loss |
Singlemode |
PC≥50dB |
UPC≥50dB |
APC ≥60dB |
|
Multimode |
PC≥50dB |
UPC≥50dB |
APC ≥50dB |
|
|
Reparability |
≤0.1dB |
|||
|
Changeability |
≤0.2dB |
|||
|
Working temperature |
-40 to +80°C |
|||
|
Durability |
1000 times |
|||
|
Sustain tension |
≥100N |
|||
|
Fiber |
9/125um , 50/125um, 62.5/125um, OM3 |
|||
|
Diameter |
0.9mm, 1.8mm, 2.0mm 3.0mm, etc. |
|||
|
Cable material |
PVC, LSZH, Plenum |
|||
|
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc. |
|||
Ordering Information:
DIN/PC-DIN/PC-SM-SX-3.0-2M
① ② ① ② ③ ④ ⑤ ⑥
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥Cable Length: 1, 2, 3 meter or customized
⑦Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
