Low Additional Loss Adjustable Type Fiber Optic Attenuator
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

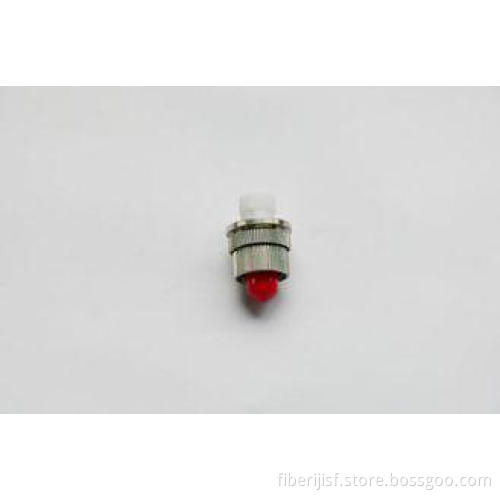

Low Additional Loss Adjustable Type Fiber Optic Attenuator for Passive Optical Networks
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Features:
High Precise attenuation value
Perfect environmental stability and reliability
Low additional loss
Flawless end face
Wide attenuation range (variable)
Application:
Specification:
|
Item |
Unit |
Parameter |
|
Operating Wavelength |
nm |
SM:1310/1550nm MM: 850 /1300nm |
|
AttenuationRange |
dB |
1-10dB(1dB step), 15, 20, 25, 30dB |
|
Return Loss |
dB |
PC:≥50 UPC: ≥55 APC: ≥60 |
|
Attenuation Tolerance |
dB |
≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
|
Working Temperature |
℃ |
-25℃~+75℃ |
|
Storage Temperature |
℃ |
-40℃~+ 85℃ |
