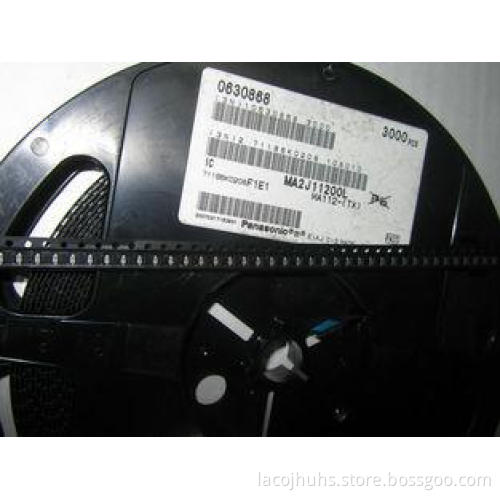

NPN PNP Transistors MA2J11200L - Panasonic Semiconductor -
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
Quick Detail:
Switching Diodes
Description:
• Small S-mini type package, allowing high-density mounting
• Ensuring the average forward current capacity IF(AV) = 200 mA
Applications:
For switching circuits
Specifications:
|
Datasheets |
MA2J112 View All Specifications |
|
Product Photos |
9-S-MINI-2P |
|
Catalog Drawings |
S-Mini 2 Pin Top |
|
Standard Package |
3,000 |
|
Category |
Discrete Semiconductor Products |
|
Family |
Diodes, Rectifiers - Single |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) |
|
Diode Type |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
40V |
|
Current - Average Rectified (Io) |
200mA |
|
Voltage - Forward (Vf) (Max) @ If |
1.1V @ 200mA |
|
Speed |
Small Signal =< 200mA (Io), Any Speed |
|
Reverse Recovery Time (trr) |
10ns |
|
Current - Reverse Leakage @ Vr |
500nA @ 35V |
|
Capacitance @ Vr, F |
4pF @ 0V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
SC-90, SOD-323F |
|
Supplier Device Package |
SMini2-F1 |
|
Other Names |
MA112-(TX) |
Competitive Advantage:
Warranty :180days for all goods
Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.
Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.
Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
Tag:
MA112TR MA112TR-ND MA2J11200LTR
