Quick Detail:
5 Watt Surface Mount Silicon Zener Diodes
Description:
Low profile package for surface mounting (flat handling
surface for accurate placement)
Zener Voltage 3.3V to 200V
High Surge Current Capability
For available tolerances – see note 1

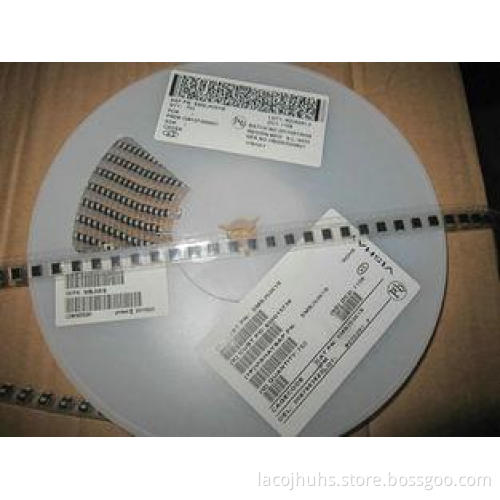

Available on Tape and Reel (see EIA std RS-481)
Applications:
Mounted on copper pads as shown below.
Lead temperature at 25o
C = TL at mounting plane. Derate
linearly above 25o
C to zero power at 150 o
C
Specifications:
Datasheets | SMBJ5338-69B |
Product Photos | DO-214AA SMB |
Product Training Modules | Diode Handling and Mounting |
Catalog Drawings | DO-214AA, SMB |
Standard Package | 3,000 |
Category | Discrete Semiconductor Products |
Family | Diodes - Zener - Single |
Series | - |
Packaging | Tape & Reel (TR) |
Voltage - Zener (Nom) (Vz) | 27V |
Tolerance | ±5% |
Current - Reverse Leakage @ Vr | 500nA @ 20.6V |
Power - Max | 5W |
Impedance (Max) (Zzt) | 5 Ohm |
Voltage - Forward (Vf) (Max) @ If | 1.2V @ 1A |
Mounting Type | Surface Mount |
Package / Case | DO-214AA, SMB |
Supplier Device Package | DO-214AA |
Operating Temperature | -55°C ~ 150°C |
Dynamic Catalog | 5W Surface Mount Silicon Zener Diode 5.1 to 200V |
Other Names | SMBJ5361B-TPMSTR |
Competitive Advantage:
Warranty :180days for all goods
Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.
Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.
Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
