Quick Detail:
CMOS Analog Multiplexers
Description:
The DG508A is a CMOS Monolithic 8-Channel Analog
Multiplexer, which can also be used as a demultiplexer. An
enable input is provided. When the enable input is high, a
channel is selected by the address inputs, and when low, all
channels are off.
A channel in the ON state conducts current equally well in
both directions. In the OFF state each channel blocks
voltages up to the supply rails. The address inputs and the
enable input are TTL and CMOS compatible over the full
specified operating temperature range.
The DG508A is pinout compatible with the industry standard
devices.
Applications:
• Data Acquisition Systems
• Communication Systems
• Signal Multiplexing/Demultiplexing
• Audio Signal Multiplexing
Specifications:
Datasheets | DG508A |

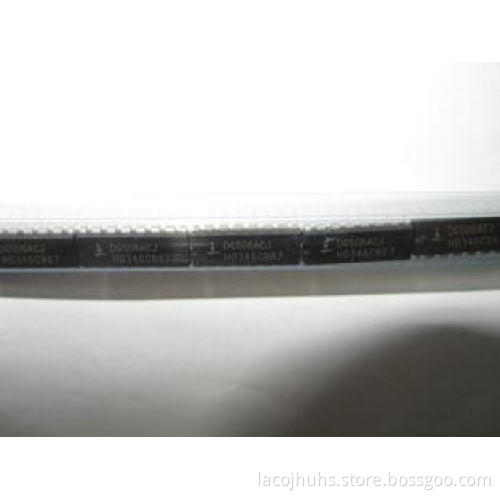

Product Photos | 16-PDIP, E16.3 PKG |
Standard Package | 1,000 |
Category | Integrated Circuits (ICs) |
Family | Interface - Analog Switches, Multiplexers, Demultiplexers |
Series | - |
Packaging | Tube |
Function | Multiplexer |
Circuit | 1 x 8:1 |
On-State Resistance | 400 Ohm |
Voltage Supply Source | Dual Supply |
Voltage - Supply, Single/Dual (±) | ±5 V ~ 20 V |
Current - Supply | 1.3mA |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Through Hole |
Package / Case | 16-DIP (0.300", 7.62mm) |
Supplier Device Package | 16-PDIP |
Other Names | DG508ACJIS |
Competitive Advantage:
Warranty :180days for all goods
Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.
Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.
Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
Tag:
DG508AAK -55 to 125 16 Ld CERDIP F16.3
DG508ABK -25 to 85 16 Ld CERDIP F16.3
DG508ACJ 0 to 70 16 Ld PDIP E16.3
DG508ACJZ
