Quick Detail:
12A TRIACS TRANSISTOR
Description:
- Available either in through-hole or surface-mount
- packages, the BTA/BTB12 and T12 triac series is
- suitable for general purpose AC switching. They
- can be used as an ON/OFF function in
- applications such as static relays, heating
- regulation, induction motor starting circuits... or for
- phase control operation in light dimmers, motor
- speed controllers,...
- The snubberless versions (BTA/BTB...W and T12
- series) are specially recommended for use on
- inductive loads, thanks to their high commutation
- performances. Logic level versions are designed
- to interface directly with low power drivers such as
- microcontrollers. By using an internal ceramic
- pad, the BTA series provides voltage insulated tab
- (rated at 2500V RMS) complying with UL
- standards (File ref.: E81734)
Applications:
Symbol Value Unit
IT(RMS) 12 A
VDRM/VRRM 600 and 800 V
IGT (Q1) 5 to 50 mA
Specifications:
|
Datasheets |
BT(A,B)12, T12xx |
|

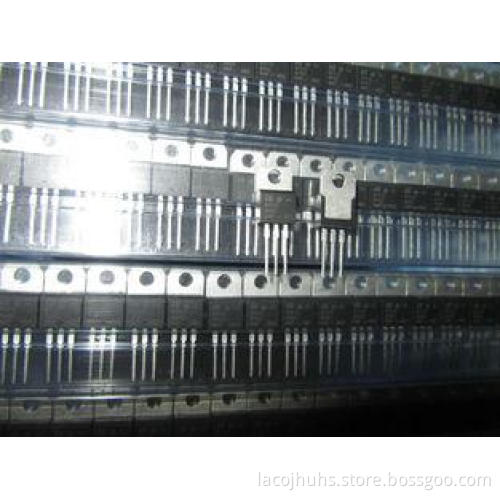

Product Photos |
TO-220AB |
|
Other Related Documents |
BTA12 View All Specifications |
|
Product Training Modules |
AC Switches Family, Part One |
|
Standard Package |
50 |
|
Category |
Discrete Semiconductor Products |
|
Family |
Triacs |
|
Series |
Snubberless™ |
|
Packaging |
Tube |
|
Triac Type |
Alternistor - Snubberless |
|
Voltage - Off State |
800V |
|
Current - On State (It (RMS)) (Max) |
12A |
|
Voltage - Gate Trigger (Vgt) (Max) |
1.3V |
|
Current - Non Rep. Surge 50, 60Hz (Itsm) |
120A, 126A |
|
Current - Gate Trigger (Igt) (Max) |
35mA |
|
Current - Hold (Ih) (Max) |
35mA |
|
Configuration |
Single |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-220-3 |
|
Supplier Device Package |
TO-220AB |
|
Dynamic Catalog |
Alternistor Triacs |
|
Other Names |
497-7186-5 |
