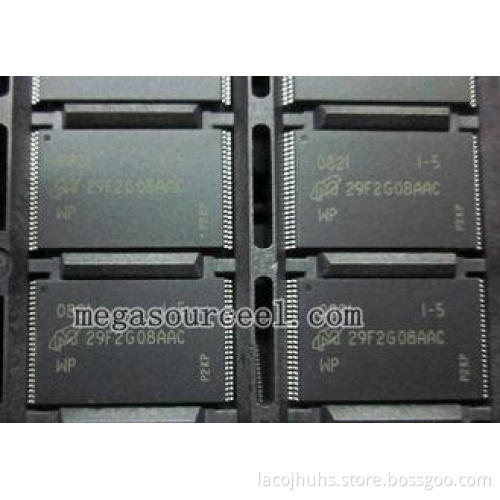

Flash Memory IC Chip MT29F2G08AACWP - Micron Technology - 2
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
Quick Detail:
2Gb x8, x16: NAND Flash Memory
Description:
• Density2
: 2Gb (single die)
• Device width: x8, x16
• Configuration:
# of die # of CE# # of R/B# I/O
1 1 1 Common
• VCC: 2.7–3.6V
• VCC: 1.65–1.95V
• Package
– 48-pin TSOP type I CPL3
(lead-free plating, 3.3V only)
– 63-ball VFBGA (lead-free, 1.8V only)
• Operating temperature:
– Commercial (0°C to +70°C)
– Extended (–40°C to +85°C)
Applications:
• Open NAND Flash Interface (ONFI) 1.0-compliant
• Single-level cell (SLC) technology
• Organization
– Page size:
• x8: 2,112 bytes (2,048 + 64 bytes)
• x16: 1,056 words (1,024 + 32 words)
– Block size: 64 pages (128K + 4K bytes)
– Device size: 2Gb: 2,048 blocks
• READ performance
– Random READ: 25µs
– Sequential READ: 25ns (3.3V)
– Sequential READ: 35ns (1.8V)
• WRITE performance
– PROGRAM PAGE: 220µs (TYP, 3.3V)
– PROGRAM PAGE: 300µs (TYP, 1.8V)
– BLOCK ERASE: 500µs (TYP)
• Data retention: 10 years
• Endurance: 100,000 PROGRAM/ERASE cycles
• First block (block address 00h) guaranteed to be valid with ECC when shipped from factory1
• Industry-standard basic NAND Flash command set
• Advanced command set:
– PROGRAM PAGE CACHE MODE
– PAGE READ CACHE MODE
– One-time programmable (OTP) commands
– BLOCK LOCK (1.8V only)
– PROGRAMMABLE DRIVE STRENGTH
– READ UNIQUE ID
• Operation status byte provides a software method of detecting:
– Operation completion
– Pass/fail condition
– Write-protect status
• Ready/busy# (R/B#) signal provides a hardware method of detecting operation completion
• WP# signal: write protect entire device
• RESET required as first command after power-up
• INTERNAL DATA MOVE operations supported
• Alternate method of device initialization
(Nand_Init) after power up4 (Contact Factory)
Specifications:
|
Datasheets |
MT29FxG |
|
Product Photos |
48 TSOP Package |
|
Standard Package |
1,000 |
|
Category |
Integrated Circuits (ICs) |
|
Family |
Memory |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) |
|
Format - Memory |
FLASH |
|
Memory Type |
FLASH - NAND |
|
Memory Size |
2G (256M x 8) |
|
Speed |
- |
|
Interface |
Parallel |
|
Voltage - Supply |
2.7 V ~ 3.6 V |
|
Operating Temperature |
0°C ~ 70°C |
|
Package / Case |
48-TFSOP (0.724", 18.40mm Width) |
|
Supplier Device Package |
48-TSOP I |
|
Catalog Page |
1083 (CN081 PDF) |
|
Other Names |
557-1201-2 |
