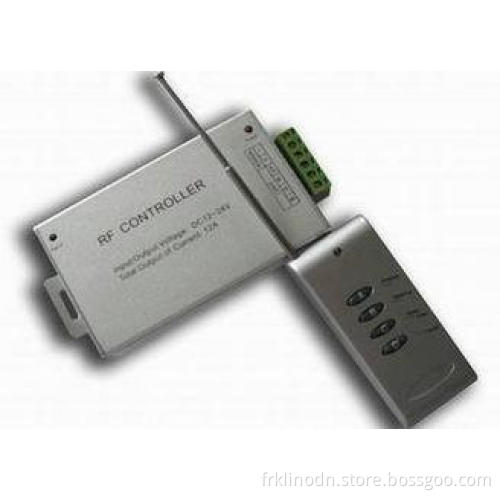

12V DC LED RF Remote Controller operate any common anode RGB lights 89x70x28mm
Descrition:
* Dimension: 89x70x28mm
* Working Temperature: -20~60 degree
* Input Voltage: 12V DC
* Connecting method: Common anode
* Output current: 4A for each color
* Remote controlled by RF(Radio Frequency) system
* Can operate any common anode RGB lights
* 7 static colors and 4 changing color patterns
Applications:
This controller is designed to be used exclusively with LED lighting.
Specifications:
|
Input Voltage |
Output |
Output current |
Connecting method |
Weight (G.W.) |
|
|
12V DC |
Three COMS output |
4A for each color |
Common anode |
|
|
Operation:
1. ON/OFF: Turn on or Turn off the controller. When it turns off, it will reserve the last patterns
2. Mode: It is a function key. Press one time, one color pattern appear. Total 11 patterns
3. Brightness+: Press one time, brightness increases one level. Total 256 levels
4. Brightness-: Press one time, brightness decreases one level.
Competitive Advantage:
01, fast delivery
02, CE, RoHS certificates
03, TWO YEARS' WARRANTY
04, easy to use
