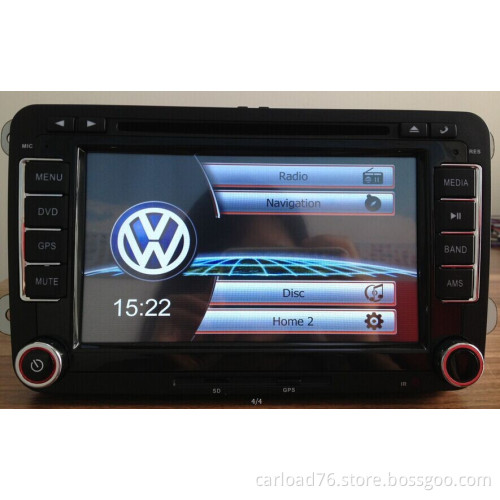

7in Vw Car DVD Player with Original Vw Ui.

Get Latest Price

Payment Type:: T/T, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union, Paypal, Money Gram

Product Description

Wince 6.0 Arm 11 Platform
With original VW UI.
Resolution: 800*480
4X45W Power supply.
In Dash 2 Din Car DVD Player.

Functions:
DVD/GPS/BT/USB/Radio/mp3/iPod/RDS/Analog TV/SD card with map/Canbus/steering wheel control.

Packing: strong gift box.

System
MCU	PANASONIC MN101EF51A (10X10X0.5MM)
Solution	ARM 11(MTK3360)
Memory/RAM	256MB DDR3 samsung
Flash	128M (samsung 128MB SLC)
Power Amplifier IC	ST TDA7388
Processor frequency	800 MHZ
OSD Language	Chinese, English, French, German, Russian, Portuguese, Arabic, Thai language, Spanish, Italian
Display
Display Mode	16:9
Touch Screen	yes
Screen brand	Hannstar
Screen Resolution	800*480
Display Type	LCD-TFT
Display Brightness	350-400 cd/m2
TFT drive	ARM 11(MTK3360)
Radio
FM/AM tuner	Silicon Labs (SI4754)
Station preset qty	AM:12 FM: 18 (optional)
Support RDS	Yes
Noise Sensitivity	FM 8DBU+-3DBU(+30db)
Radio response bandwidth	AM:522-1720KH FM:87.5-108MH (optional)
DVD
Video Output System	CVBS format
Media type	VIDEO:DVD,VCD,AVI,VID,DIVX,ASF,MP4,M4A,MPG,MPEG,DAT,VOB,3GP,M2V,3G2, M4V,OGM,RM,RMV,RMVB,FLV,MKV,MOV,TS,M2TS,MFS AUDIO:CD,MP3,AC3,AAC,RA,RAM,RMM,PCM,WAV,MP1,MP2,FLAC,APE,OGG
Signal-To-Noise Ratio	85 dB
DVD loader mechanism	WFF-050SH1180 (WEIZHEN MOTOR))
DVD Pick up/lens	HOP-1200XH (Hitachi )
DVD Decoder/Solution	MTK
Virtual ten disc	Yes (but still in adjustment)
DVD language	Chinese, English, French, German, Russian, Portuguese, Arabic, Thai language, Spanish, Italian
DVD Servo Drive	AMM5888SL/F
DVD Motor	PANASONIC (MDN3BL3CSAS)
GPS
GPS Solution	MTK3328 RF
GPS operation system	WINCE6.0
GPS resolution	800*480
baud	9600 (Support 4800~115200)
port	COM 1
Map Version	Support most of the map version
GPS card memory	1-32G
TV tuner
Analog TV Tuner	Qishengda (MT-S77)
TV system	Support NTSC,PAL, SECAM: D/K. I. B/G. M
Digital TV or Analog TV	yes
ISDB-T/DVB-T tuner	Tianhe
TV antenna	Analog TV antenna NO, Digital TV antenna YES.
Amplifier
Form Factor	In-dash unit integrated 9600
Amplifier max output power / channel qty	45 Watts x 4
EQ mode	Classic, Rock, Pop, Jazz, Normal
Power Amplifier IC	ST TDA7388
audio processor	PT2348 SOP-36
Bluetooth
BT Version Standard	Bluetooth V2.0, Support HSP,HFP,A2DP,AVRCP (Bluetooth Stereo Music),can play stereo music through Bluetooth
Bluetooth brand	MT6622
Stereo audio play/mute	Yes
Built-in microphone/hands free	Yes
Received Call	Yes
Dialled/Rediall Call	Yes
Missed Call	Yes
Phone Book	Yes
Remote Control
Remote control	IR Remote Controller (optional)
Interface
A/V Input	2channel audio in, 1channel video in, 1 channel Camera input
A/V Output	4channel audio out , 2channel video out, 1 channal Subwoofer out(optional)
Connector Type	1 x A/V IN,2 x A/V OUT,1 x POWER,1 x IPOD,1 x USB,1 x AUX-IN, 1 x TV ANTENNA,1 xRadio ANTENNA
USB/SD Card Port	1 SD Card Port, 1 Mini USB Port, Support 16-32G
Video type supporting by SD card	VIDEO:AVI,VID,DIVX,ASF,MP4,M4A,MPG,MPEG,DAT,VOB,3GP,M2V,3G2, M4V,OGM,RM,RMV,RMVB,FLV,MKV,MOV,TS,M2TS,MFS AUDIO:CD,MP3,AC3,AAC,RA,RAM,RMM,PCM,WAV,MP1,MP2,FLAC,APE,OGG
Ipod Control	Yes
Direct Connection Cable for Ipod Included	Yes
Additional Features
Portable HDD Compatible	No
Built-in Speaker	Yes
Subwoofer Output	Yes
Anti-Shock	Yes
General
Color	black(optional)
Operation temperature	-20°—70°
Storage temperature	-30°—80°
Net Weight	4 kg
Warranty	1 year
What's in the box
	1 x Remote controller(optional)
	1 x Power Cable
	1 x RCA Cables(optional)
	1 x Ipod cable(optional)
	1 x USB cable
	1 x GPS antenna
	1 x Touch pen
	1 x Manual
