Product Description
Product Description

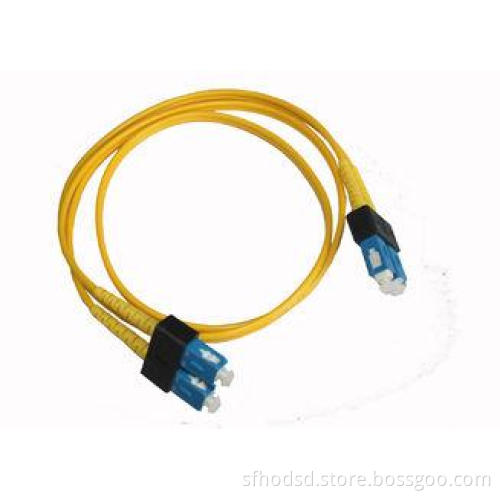

SM DX 9 / 125 Optical Fiber Patch Cable , SC to SC Fiber Connector
Quick Detail:
- Ferrule end-face: PC,UPC,APC
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4 and SMA
- Cable type: DX/SX,PVC,LSZH,OM3,OM4,OFNR,OFNP
- Mode: SM:9/125,MM:50/125,62.5/125
- Cable diameter: 0.9mm,2.0mm,3.0mm
- High return loss and low insertion loss
- High reliability and stability
Specifications:
|
Item |
Vaule |
|
Ferrule end-face |
PC,UPC,APC |
|
Connector type |
FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4 and SMA |
|
Cable type |
DX/SX,PVC,LSZH,OM3,OM4,OFNR,OFNP |
|
Mode |
SM:9/125,MM:50/125,62.5/125 |
|
Cable diameter |
0.9mm,2.0mm,3.0mm |
|
Insertion loss |
≤0.2 and ≤0.3dB |
|
Return loss |
≥50 and ≥65dB |
|
Exchangeability |
≤0.2dB |
|
Vibration |
≤0.2dB |
|
Operating temperature |
-40 to 75°C |
|
Storage temperature |
-45 to 85°C |
|
Cable length |
1,2,3m and 5m or customized |
|
Operating wavelength |
1,310 and 1,510nm |
Applications:
Videos
Active device termination
Premise installations
Telecommunication networks
Local area networks (LANs)
Data processing networks
Wide area networks (WANs)
Industrial, medical and military
