Hot sale three phase high frequency online ups uninterrupted power supply 10-120Kva
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- EXW
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 15000 pieces per month |
| Supply Ability: | 15000 pieces per month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | EXW |
| Certificate: | ISO9001,CE |
| Transportation: | Ocean,Land,Air |
Hot sale three phase high frequency online ups uninterrupted power supply 10-120Kva
1.Application for the online ups:
Internet servor,middle data center,net work system,bank and securities,medium-scale office automation,
precision equipment,etc.
2.Features for the online ups:
*Strong load capacity: Output PF: 0.9
*Green & energy saving:Input PF is above 0.99, THDI<2%
*More pure output voltage: THDU<0.6% (liner load), 3% (non-liner load)
*Longer battery lifespan: Intelligent battery management(ABM),smart charger protects battery effectively
*Easy maintenance design (MMTM<0.5h)
1. Historical records search function, events up to 1,000 items
2.Similar modular design
3.With manual maintain bypass
4. Replacing battery without stopping the UPS running
*Complete digital control technology: All the subsystems are digital controlled including the IGBT rectifier, inverter, charger & discharger
*2 AC input methods allowable: Allowing different AC source provides for bypass & battery mode
*Strong environmental adaptability: Wide input voltage & frequency range
*Comprehensive protection measures: Surge, short circuit & other protection to ensure the reliability of UPS system
*Cold start and AC start function:Directly start the Ups through battery or mains
*Superior network monitoring capabilities: Communication port (RS232,RS485, dry contact etc.) , SNMP card optional
*Self-checking function: When battery disconnect or inverse, Ups would alarm
3.Specification for the online ups:
|
Model |
PW3310 |
PW3315 |
PW3320 |
PW3330 |
PW3340 |
||||
|
Rating power |
10Kva/9Kw |
15Kva/13.5Kw |
20Kva/18Kw |
30Kva/27Kw |
40Kva/36Kw |
||||
|
AC Input |
|||||||||
|
Rated voltage |
380/400/415Vac(Line-Line) |
||||||||
|
Input connection |
3phase +N+PE |
||||||||
|
Power factor |
Above 0.999 |
||||||||
|
THDI |
Less 2% |
||||||||
|
Voltage range |
-40%~+25% |
||||||||
|
Frequency |
40-70Hz |
||||||||
|
Bypass |
+/- 15%(settable) |
||||||||
|
Rated voltage |
380/400/415Vac(Line-Line) |
||||||||
|
Input connection |
3phase +N+PE |
||||||||
|
Output |
|||||||||
|
Power factor |
0.9 (lag) |
||||||||
|
voltage precision |
380/400/415Vac±0.5% |
||||||||
|
Dynamical voltage transient |
Less 5% ( 0~100% load step) |
||||||||
|
THDU |
THD less 0.6%( linear load ),3%(non-linear load) |
||||||||
|
Crest Factor |
3:1 |
||||||||
|
Frequency tracking range |
50/60Hz±3Hz |
||||||||
|
Output Frequency precision |
±0.05%(Battery mode) , ±3hz(Line mode) |
||||||||
|
Phase displacement |
120±0.5°(Balance or imbalance load ) |
||||||||
|
Voltage unbalance |
+/-3%( 100% unbalance load) |
||||||||
|
Frequency tracking rate |
Less 1Hz/s |
||||||||
|
Overload capacity |
110%,transfer to bypass after 1 hour,110%<load<125%,transfer to bypass after 10 minutes |
||||||||
|
125%<load<150%,transfer to bypass after 1 minute,above 150%, transfer to bypass after 200ms |
|||||||||
|
Bypass overload |
Below125% long time operation 125%<Load<150%,10mins;above 150% 1S |
||||||||
|
System |
|||||||||
|
System efficiency |
Above 92% |
||||||||
|
98%(ECO) |
|||||||||
|
Display |
LCD+LED |
||||||||
|
EMC |
IEC62040-2 |
||||||||
|
IEC61000-4-2 (ESD) |
|||||||||
|
IEC61000-4-3 (RS) |
|||||||||
|
IEC6100-4-4 (EFT) |
|||||||||
|
IEC6100-4-5 (Surge) |
|||||||||
|
Noise (1m) |
50- 60dB |
||||||||
|
Insulating resistance |
Above 2M (500VDC) |
||||||||
|
Insulating intensity |
(input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min |
||||||||
|
Surge protection |
Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA |
||||||||
|
IP |
IP20 |
||||||||
|
Battery configuration |
|||||||||
|
Installation |
+/-216Vdc( 168/192/216/240Vdc |
||||||||
|
Battery |
Free Maintenance Lead Acid (Gel battery or Ni-CD) |
||||||||
|
Long run |
Battery to be connected external |
||||||||
|
Inbuilt battery
|
36pcs *7ah |
36pcs *7ah |
36pcs *9ah |
72PCS*7ah |
72pcs*9ah |
||||
|
Connection |
Bottom cable connection in front |
||||||||
|
Charger |
1-15A,ABM technology |
||||||||
|
Physical |
|||||||||
|
Unit dimension(Long ) |
390*850*977mm(W*D*H) |
500X717x1150mm(W*D*H) |
|||||||
|
Unit dimension(Inbuilt ) |
390*850*977mm(W*D*H) |
500X717x1150mm(W*D*H) |
|||||||
|
Weight(KG)(Long) |
110/130 |
130/150 |
152/172 |
160/190 |
160/190 |
||||
|
Weight(KG)(Inbuilt) |
182/202 |
202/222 |
216/236 |
331/361 |
367/397 |
||||
|
10Kva and 15kva:inbuilt 36pcs 7ah 20Kva:inbuilt 36pcs 9ah |
72pcs 7ah |
72pcs 9ah |
|||||||

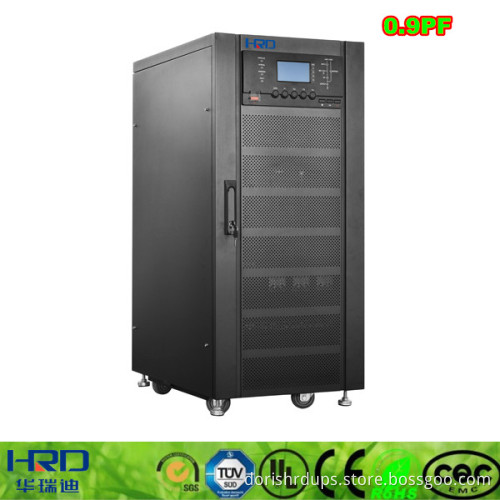

4.Pictures for the online ups:
5.Certification for the online ups:
6.Packing for the online ups:
7.About us:
Shenzhen HRD Science & Technology Co., Ltd. is a large high professional UPS manufacturer,with ISO 9001:2008
and ISO 14001:2004 certified. Based on the most advanced and the stalest technique guarantee system, HRD
provides the following products and custom made product for global customer.
1)UPS power supply ( uninterrupted power supply)600va-600Kva
2)Inverter(electricity,solar etc.system)1-200Kva
3)EPS(emergency power supply)10-200Kva
4)Lead-acid maintenance-free battery
With the same diligent customer-oriented spirit, HRD is dedicated to continuously designing, manufacturing,
marketing and introducing a complete line of UPS, inverters and power products to the demanding power market.
With 2 large manufacture base and strict quality traceable syste, HRD makes sure to deliver high quality goods
on time for our global customer.
So far, our good quality power product are exporting to more than 60 countries all over the world, stragety partners
including world-famous UPS brand.
We sincerely and warmly welcome you to visit us and cooperate with us!
8.Our service:
A. Reply your inquiry within 24 hours.
B. Experienced staff answer all your questions in fluent English.
C. Customized design is available.OEM&ODM are welcomed.
D. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
E. Special discount and protection of sales area provided to our distributor.
9.Warranty:
-
1-20Kva UPS : 18 months from shipment date
-
3/3 phase UPS : 2 years from shipment date
If any part fails within warranty and needs repairing or replacing, please send part or board back to us (customer pay the freight fee),
Or you provide the exact details information as per our requirement, and we offer you free spare parts and send to you(customer pay the freight fee)
10.FAQ:
1. What is uninterrupted power supply?
An UPS, uninterruptible power supply, is an electrical apparatus that provides emergency power to a load,when the AC power is on,
it can have the function of filter and AVR, providing high quality power source.
2.What is the difference between high frequency UPS and low frequency UPS?
|
Item |
High frequency UPS |
Low frequency UPS |
|
Input PF |
0.99 |
0.7 |
|
Efficiency |
85-90% |
75-85% |
|
Power density |
Higher |
Lower |
|
Power device capacity |
Less |
More |
|
Weight |
Light |
Heavy |
|
Dimension |
Compact |
Bigger |
|
Price |
Lower |
Higher |
|
Overload ability |
Normal |
Better |
|
Anti input sugar capacity |
Normal |
Better |
|
Output anti-crush , short circuit capacity |
Normal |
Better |
|
N-G voltage |
Bad |
Better |
|
Output component |
More |
Less |
|
Damage extent of device when it`s fail |
Higher |
Lower |
|
Stability |
Normal |
Better |
|
Compatibility with generator |
Bad |
Better |
We are ready for your kind enquiry and offering you with top high end quality product in best price!
