12 Cores Singlemode Outdoor Fiber Optic Cable Figure 8 self

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

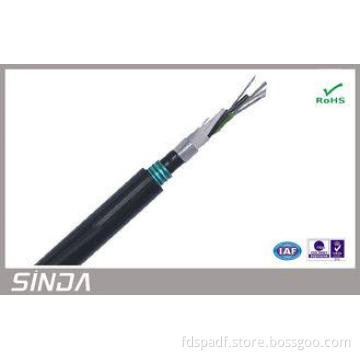

Long distance 8 Cores Singlemode Figure 8 self supporting cable GYXTC8S

8 Cores Singlemode Figure 8 Self-supporting Cable GYXTC8S

Quick Detail:

Model: GYXTC8S

Fiber Cores: 2~12 cores

Fiber Type: 9/125um, 50/125um, 62.5/125um

Jacket Material: PE ,LSZH

Place of Origin: Guangdong China

Standards: YD/T 901-2001 as well as IEC 60794-1

Description:

Stainless steel or gaivanized steel self-supporting.

Excellet mechanical and environmental performance

Applications:

Long distance and local area network communication

Adopted to Outdoor distribution.

Suitable for aerial .pipeline laying method.

Specifications :

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
2	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
4	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
6	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
8	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
12	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber

Competitive advantages:

Our products conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

Our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
