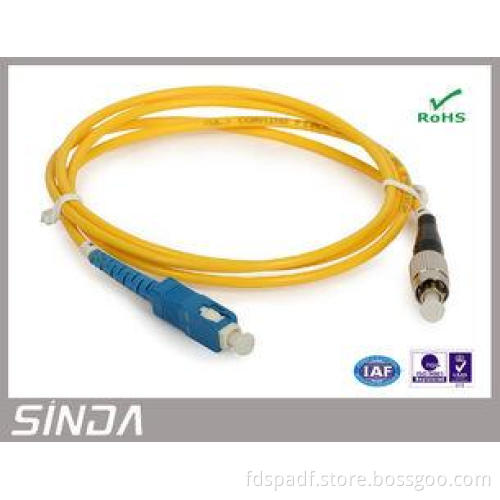

UPC 2.0mm Simplex Fiber Optic Patch Cord Singlemode patchcord SC - FC
SC/FC Simplex Fiber Optic Patch Cord Singlemode 9/125
Quick Detail:
Model Number : SC/PC-FC/PC
Dimension : 1 Meter
Cable Color : Yellow
Type : UPC
Core Quantity : Simplex
Cable Dia : 2.0mm
Mode Type : Singlemode
Available Type : FC SC ST LC MU MTRJ E2000 D4 ...
Description:
Telcordia GR326,IEC,TIA/EIA Standard Compliant
100%Optical performance inspection and endface geometric parameter control
Low insertion loss&high return loss
Varieties of cable assemblies
RoHS Compliance
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
