PVC Jacket Fiber Optic lc-lc multimode patch cord With Length 1 Meter For Netwrok

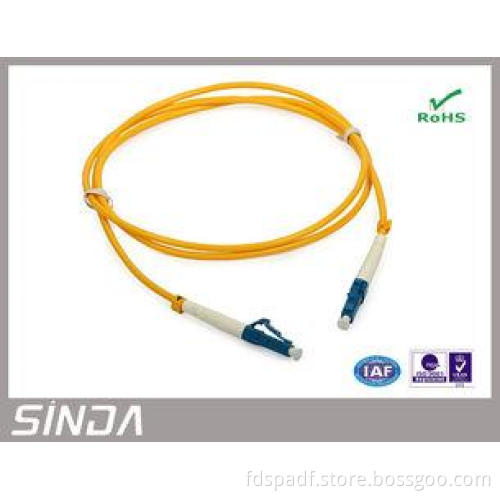

LC/LC SM Simplex Fiber Optic Patch Cord With Length 1 Meter For Netwrok
Quick Detail:
Fiber Diameter : Φ0.9, Φ2.0, Φ3.0;
Ceramic Ferrules : PC,UPC and APC polishing;
Jacket Type : PVC or LSZH
Connector Available : FC,SC,ST.LC, MTRJ,MPO,MU ect...
Color : Per customer's request
Fiber Type : G652D, G655,G657A,G657B
Description:
Fiber optic patch cord is one jof the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.
Using high precision ceramic ferrule
Rubbing exactitude and testing completelly
Low insertion loss and high return loss
High stability and repeat
Be according with the telcordia GR-326-CORE standard
Ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule
Applications:
CATV,LAN,MAN,WAN,FTTH,FTTB;
Fiber-optical communications system;
Test & Measurement,Industry,Medical.
Lucent corning fiber optic cable
Order information:
SC/ PC – SC/ PC/ SM/ 2C/ 3.0 – 1M
1 2 1 2 3 4 5 6
1.Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;
2.Ferrule End-face:PC,APC;
3.Fiber Type:Single-mode(SM:9/125um),Multimode(MM:50/125um or 62.5/125um);
4.Cable Diameter:3.0mm,2.0mm,0.9mm;
5.Cable Diameter:3.0mm,2.0mm,0.9mm;
6.Length:1,2,3 meter or sustomized length;
7.Cable type:PVC,LSZH,OM3,OFNR,OFNP,Plenum
Specifications:
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
