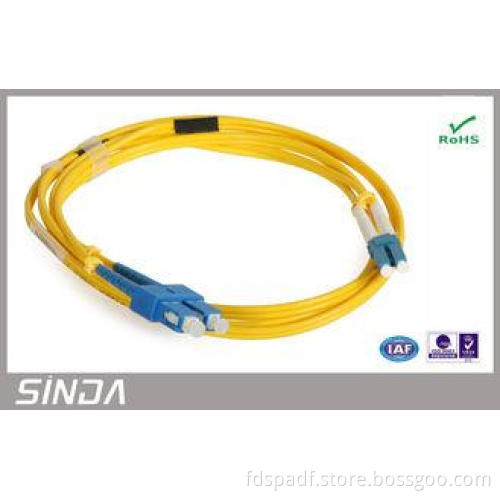

SC LC OS2 9 / 125um Fiber Optic Patch Cord for FTTH / LAN / CATV / FOS
Quick Detail:
Model Number: LC to LC
Product name: LC APC OS2 Singlemode duplex single mode lc-lc fiber patch cord
Length: Customized
Cable diameter: 0.9/2.0/3.0mm
Cable color: yellow,orange,aqua,grey etc
Cable type: simplex,duplex,bundle,ribbon
Inserted core cover: PC,UPC,APC
Fiber type: singlemode,multimode,OM3
Connector: FC,LC,SC,ST etc
Plating material: PVC, LSZH
Description:
Various connector type available
Low back reflection loss
Compact size
Low insertion loss
High Return Loss
Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
Single-mode Fiber or Multi-mode Fiber Available (For Simplex or Duplex)
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
|
Item |
Mode Type |
PC |
SPC |
UPC |
APC |
|
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.20dB |
|
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
|
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
|
Repetition Test |
Additional Loss≤0.1dB,Reture Loss Variability<5dB |
||||
|
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Reture Loss Variability<5dB |
||||
|
Operating Temperature |
-40°C~+75°C |
||||
|
Storage Temperature |
-40°C~+85°C |
||||
|
-Option:CableDiameters;0.9,2mm,3mm&others |
|
|
|
||
|
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR |
|
||||
