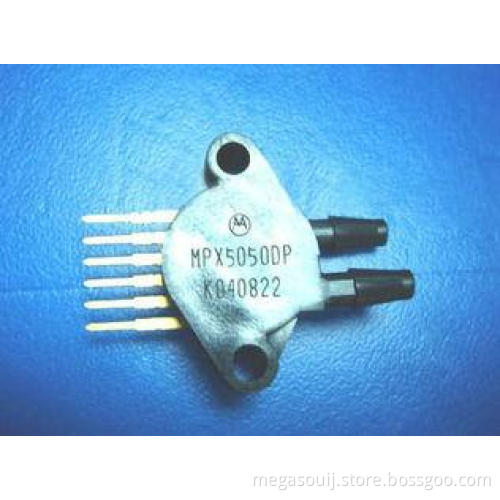

MPX5050DP - Motorola, Inc - OPERATING OVERVIEW INTEGRATED PRESSURE SENSOR 0 to 50 kPa (0 to 7.25 psi) 0.2 to 4.7 Volts Output
Quick Detail:
MPX5050DP - Motorola, Inc - OPERATING OVERVIEW INTEGRATED PRESSURE SENSOR 0 to 50 kPa (0 to 7.25 psi) 0.2 to 4.7 Volts Output
Description:
The MPX5050 series piezoresistive transducer is a state–of–the–art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin–film metalliza-tion, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
Applications:
• 2.5% Maximum Error over 0° to 85°C
• Ideally suited for Microprocessor or Microcontroller–Based Systems
• Temperature Compensated Over – 40° to +125°C
• Patented Silicon Shear Stress Strain Gauge
• Durable Epoxy Unibody Element
• Easy–to–Use Chip Carrier Option
Specifications:
Datasheets | MPX5050, MPXV5050G Series |
Product Photos | 867C-05 |
Catalog Drawings | MPX(4,5)xx0DP Side 1 |
Standard Package | 20 |
Category | Sensors, Transducers |
Family | Pressure Sensors, Transducers |
Series | MPX5050 |
Pressure Type | Differential |
Operating Pressure | 7.25 PSI |
Port Size | Male, 0.194" (4.9276mm) Tube |
Output | 0.2 V ~ 4.7 V |
Accuracy | ±2.5%FSS |
Voltage - Supply | 4.75 V ~ 5.25 V |
Termination Style | PCB |
Operating Temperature | -40°C ~ 125°C |
Package / Case | 6-SIP, Dual Ports, Same Side |
Factory Setting | - |
Dynamic Catalog | MPXx5050 Series |
Competitive Advantage:
Warranty :180days for all goods
Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.
Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.
Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
