HDMI Extender HDMI Optical Extender 300M HDMI1.4V 4kx2K 3D 1080P 120hz Optical Fiber

This YT-HDT1R1300M HDMI Optical fiber extender use single Twin-core multimode LC-LC fiber can reach HD signals 300m, and make sure it support Full HD 1080P, 4K*2K, 3D signal. It has broken the distance limitation of HDMI cable and more flexible. In order to save customers' cost, our company offer solutions for HD signals transmit conditions, for example some place the transmit distance has limitation, broadcast, data control center, information share center, showing room, plaza advertisement, train platform, airplane, shopping mall etc.

Advantages:

1. HDMI cable the distance is not flexible, and need professional workers, the customer can't change the distance easily. But our system is according to the environment.

2. If customer plan to fix the HDMI cable in the inner pipe, because HDMI connector is bigger, it is hard to Elongation and shortening.

3. Because this system use optical fiber as the transmission medium, it can reach 300m and the signal support Full HD 1080P, ,4K*2K, 3D.But is not able to.

Features:

1. Long distance and low power consumption. No signal loss, set up rather easy.

2. Multimode, twin-core fiber, 850nm, double LC-LC interface,10G,50/125um,

LC-LC high interface roughness--OM3 optical fiber patch cord instead of HDMI

cable, reach 300m;

3. Optical fiber, multimode, twin-core fiber interface;

4. Meet EEE802.3ae, 10GBASE-SR connection standard.

5. Auto adjust feedback information,no need worry about the length.

6. Wave length rate: 850nm-1310nm

7. Support HDCP protocol, HDMI 1.4A,support DDC CEC HPD

8. Support high resolution 1080P/60Hz,4K*2K*30Hz,3D

9. Support 340Hz/10Gbps/frame( total 10.3Gbps)bandwidth

10. Support 36\48bit(total 48bit)deep color

11. Audio format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DOLBY-AC3/DSD/HD(HBR)

1. Signal input.........................................HDMI1.4 A compatible

2. Video Output...................................HDMI1.4 A compatible

3. HDMI Resolution...........-Full HD 1080P60Hz,3D,4K*2K*30HZ

4. Audio format -.........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD/HD(HBR)

5. Max Extend distance-...................-300M

6. Video enlarge bandwidth-....................................10.2Gbps/340MHz

7. Frequency Range...........................................24/25/30/50/60/120Hz

8. Size(L*W*H)...............................80x20x9 mm

9. Net weight..................................................................-0.1kg*2

10. Operating Temperature range.......................... +/-5℃ to +70℃

11. Operating Humidity range..............-5% to 95 % RH (no condensation)

12. Power adapter......-..........................DC 5V/2A

13. Max power...................-5W

Remark:

1.To ensure the signal quality,please use OM3 Twin-core multimode LC-LC fiber

2.Normal optical fiber may not work or the signal is not so good.

3.Sometimes short transmit will be work, if long distance does not work please check the cable or connection.

Connection:

1) Connect HDMI signal input(For example DVD,PS3,STB,laptop ect)to transmitter input;

2) Connect multimode, twin-core fiber, 850nm, double LC-LC interface,10G,50/125um, patch cord LC-LC OM3 optical fiber;

3) Connect the receiver HDMI output to display machine HDMI signal input.

4) Power on.

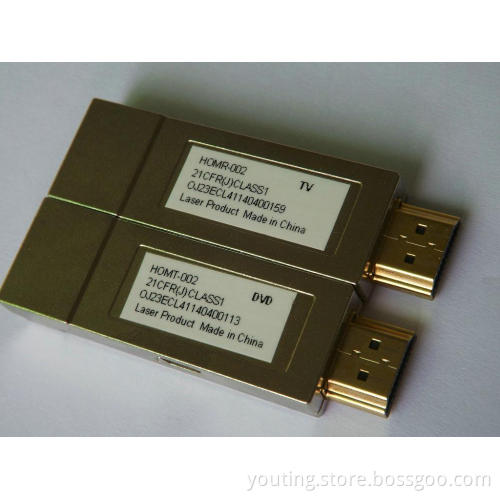

1) HDMI transmitter 1pcs

2) receiver 1pcs

3) DC 5V USB power Micro 5P 2pcs

4) User manual 1pcs

5) Certificate of approval1pcs

6) Warranty card 1pcs
