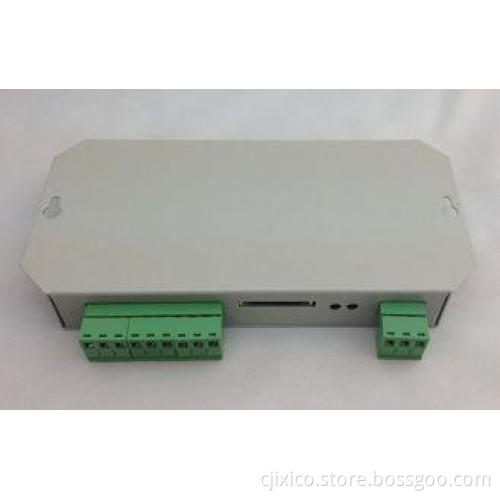

RGB LED Lighting Controller With SD Card Slot , dmx512 Light Controller
Quick Detail:
1, 32—256 Gray,Support software Gamma correction.
2, Support the rules and special-shaped handle.
3, Single-port output,can support 2048 lights.
4, Off-line(SD Card) control, play back content stored in the SD card.
5, T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6, The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
7, Compatible with single line or double line chips.
Description:
Definition of buttons:
| Buttons | Meaning | |
| SET | Save Settings ( to save current settings file and the playback speed ). | |
| MODE | Change programs | |
| SPEED+ | Speed up | Press speed+ and speed- on the same time the program will play circularly. |
| SPEED- | Speed down | |
| DC5V | +5V power input |
| GND | Power GND input |
| 7．5-24V | +7.5-24V power input |
| POWER | Power indicator |
| ERROR | Error indicator |
| SD CARD | SD card slot |
TTL signal(245/spi signal): RS485 signal.
| CLK | Clock signal | B | Signal A / DMX+ |
| DAT | Data signal | A | Signal B / DMX- |
| GND | Signal ground | GND | Signal ground |
Applications:
Support IC model
| IC model | Control mode for software | Pixels(MAX) | Note |
| LPD6803,D705,1101,6909, 6912 | T-1000-6803 | 2048 pixels | |
| LPD8806,LPD8809 | T-1000-8806 | 2048 pixels | |
| TM1803,TM1804,TM1809,TM1812 | T-1000-TM | 2048 pixels | TM1804 and TM1809 are divided into high and low |
| TM1903,TM1904,TM1909,TM1912 | T-1000-TM19 | 2048 pixels | |
| UCS6909,UCS6912,UCS7009,UCS5903 | T-1000-UCS-32 | 2048 pixels | |
| UCS1903,UCS1909,UCS1912 | T-1000-UCS-256 | 2048 pixels | 1903 and 1909 are divided into high and low |
| UCS3903 | T-1000-UCS-1024 | 2048 pixels | |
| DMX512 | T-1000-DMX | 170/512 pixels | Compatible with standard DMX512 |
| WS2801,WS2803 | T-1000-WS | 2048 pixels | |
| WS2811 | T-1000-WS2811 | 2048 pixels | WS2811 be divided into high and low |
| DS189 | T-1000-DS189 | 2048 pixels | |
| TLS3001,TLS3002,TLS3008 | T-1000-TLS | * pixels | |
| P9813 | T-1000-P9813 | 2048 pixels | |
| SM16715 | T-1000-SM16715 | 2048 pixels | SM16715 be divided into high and low |
| SM16716 | T-1000-SM16716 | 2048 pixels | |
| BS0901,BS0902 | T-1000-0901 | 2048 pixels | |
| BS0815 | T-1000-0815 | 2048 pixels |
Specifications :
Memory card:
type: SD card(suggest using high-speed SD card)
Capacity: 128MB—2GB
Format: FAT
Store file: *.led
Physical parameters:
Working temperature : -30℃—85℃
Working voltage: DC5V / DC7.5-24V
Working power: 1W
size: L165mm×W80mm×H30mm
weight: 0.35KG
signal port: 3pin connect port
Competitive advantages:
- We have more than 7 years’ experience ,
- We have more than 20 foreign customers Who have kept purchasing from our company more than 3 years.
- Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
- Small MOQ, Short delivery time,2 years’ warranty.
