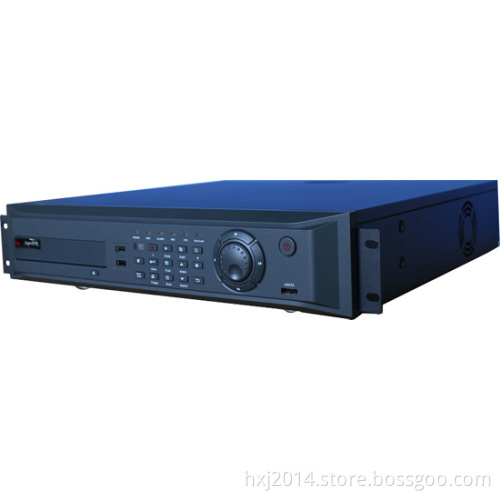

H.264 2U 3G network 960H DVR
  • H.264 2U 3G network 960H DVR
H.264 2U 3G network 960H DVR

H.264 2U 3G network 960H DVR

Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 5000/MONTH
Certificate: CE
Product Description
Product Description
Model No.
HK-S8216F
Compression Format H.264, supports VBR as well as CBR
Operating system Embedded LINUX
Video Input
16CH BNC(1.0VP-P, 75Ω)
Video Output 1 BNC, 1 VGA, 1 HDMI, 1 SPOT
Audio Input
16CH BNC
Audio Output 1ch BNC
Audio Compression G.711A
Audio Bidirectional Talk 3.5mm MIC Input Interface
Alarm Input
16CH
Alarm Output 4ch
Preview Resolution 960H: PAL(960*576), NTSC(960*480); FD1: PAL(704*576), NTSC(704*480); VGA/HDMI: 1920*1080
Preview Display
1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Preview Privacy Masking 4 zones Maximum, On DVR
Recording Resolution
16ch FD1/CIF/960H/Q960H
Record Mode Manual, Schedule, Motion, Alarm
Record Interval Pre-record, 5~30s; Post-record, 0~180s
Playback Channel 8ch/16ch 960H Full Channels Realtime Playback
Playback Search Mode Time, Date, Record Mode, Smart Search, Quick Playback
Playback Privacy Masking 4 Zones Maximum, On DVR and PC
3G Network Support 3G Modem
Remote Operation WEB
Mobile Support Support (IPhone, Andorid, Ipad)
Backup USB Disk/ USB HDD/ USB CD&DVD-RW/ eSATA / Internal SATA burner/ Network Download
HDD 8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1)
Network Interface 1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface 4 Interfaces( Front 2 & Back 2)
Auxiliary Interface 1 RS-485(FDX), 1 RS232, 1 IR Extension Cord
Storage Temperature& Humidity -20~65°C/ 10~90% RH (No Condenser)
Operation Temperature& Humidity -10~45°C/ 15~85% RH
Power Adapter 220/110V, 50/60HZ
Power
71W
Dimension(L*W*H) 440 * 440 * 88mm
Weight Gross weight, 10kg; Net weight, 7.1kg
