RCA Composite and S video to VGA / AV TO VGA Converter up-scaled to 1680 x 1050

RCA Composite and S-video to VGA(AV TO VGA/TV to PC) up-scaled to 1680x1050

FY-1302 RCA Composite and S-Video to VGA Converter, which supports 4:3, 16:9 and 16:10 wide screen with output VGA resolution up to WSXGA 1680x1050! Suitable for connection of DVD, STB, DVR, etc. to PC monitor. With 3 decoding function, the picture after conversion output from VGA is with high definition and effect.

Features

- Composite Video Input Interface: RCA

- Inputs: 1 X Composite video, 1 X S-Video and 1 X VGA;
- Output: 1 X VGA;
- Switch between the 3 inputs to output any one of them to VGA;
- The VGA input is pass through to the VGA output without any processing;
- Both PAL / NTSC are supported;
- It supports wide-screen LCD as well to cater for wider applications.
- VGA Resolution: 800X600/60HZ, 800X600/75HZ, 1024X768/60HZ, 1280X720/60HZ, 1440X900/60HZ, 1600X900/60HZ, 1680X1050/60HZ.
- Lightness, hue, contrast, saturation, color, etc. adjustable via button and auto-store when power off.

Composite video and S-video are up-scaled to 1680x1050 and 3D Video-processing tech is applied to make output picture more vivid:

From General Conversion With FY-1032 TV-PC

Note: OVERFLY is capable of offering OEM & ODM service, as per cutomer design.

Connection Image

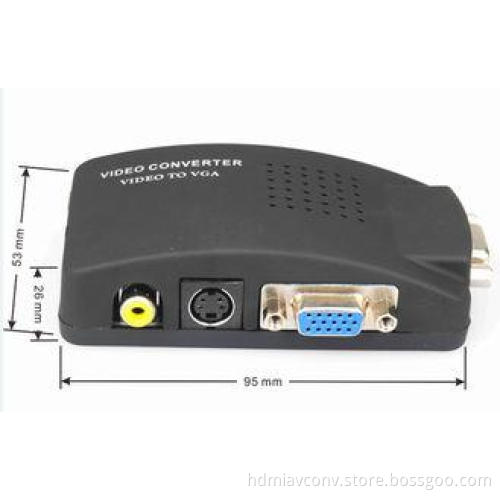

Interface Specification

1. VGA Out: To connect VGA display (Computer monitor or LCD)
   (2) Video In: To connect BNC composite video devices (e.g. CDD Camera, DVR, etc.)
   (3) S-video In: To connect S-Video devices (e.g. DVD, STB, etc.)
   (4) VGA In: To connect PC host
   (5) DC 5V: To connect power supply
   (6) LED Indication

(1) Input: Switch between input sources Composite Video>>S-VIDEO>>VGA
(2) Menu: Click it to adjust lightness, contrast , saturation and hue.
(3) Freeze/+ and (4)Resolution/-
- Under BRI Menu, "Freeze/+": increase value of lightness; ” Resolution/-" : decrease value of lightness.
- Under "CON" Menu, ” Freeze/+" : increase value of contrast; "Resolution/-" : decrease value of contrast
- Under "COL" Menu, ” Freeze/+" : increase value of saturation, "Resolution/-" : decrease value of saturation
- Under "HUE" Menu, ” Freeze/+" : increase value of hue; ” Resolution/-" : decrease value of hue
- When menu is closed, Press : “Freeze/+" to freeze output display video;
- When menu is closed: Press: "Resolution/-" to select output resolution;
Press "Input" and "Resolution/-" at the same time: Default Setting.

(5) Wide Screen: Click it to switch between normal 4:3 screen and wide screen output.

Accessories & Package

Package Info:
