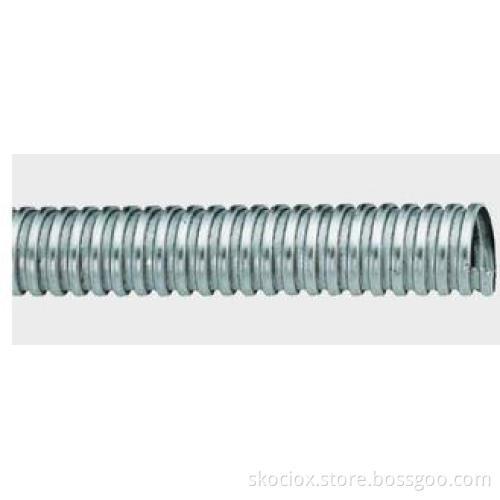

Stainless steel flexible electrical conduit for household Electric wire protection
Description
◆ Steel flexible conduit offers high flexibility and mechanicalstrength where low level ingress protection is sufficient.
◆ Type SLDX is widely used in dry, internal installations e.g.Underfloor wiring whereas. Fit for connectors of SL020,SL023, SL031 type
|
CAT# |
Size |
Internal Diameter |
External Diameter |
Min. Bend |
Coil |
|
SLDX210 |
3/8" |
12.3/12.8 |
15.7/16.2 |
30 |
50 |
|
SLDX220 |
1/2" |
15.8/16.3 |
19.2/19.7 |
43 |
50 |
|
SLDX230 |
3/4" |
20.7/21.2 |
24.5/25.1 |
50 |
50 |
|
SLDX240 |
1" |
26.4/26.8 |
30.4/31.0 |
57 |
50 |
|
SLDX250 |
1-1/4" |
34.7/35.4 |
39.6/40.3 |
70 |
50 |
|
SLDX260 |
1-1/2" |
40.0/40.6 |
45.2/45.8 |
80 |
25 |
|
SLDX270 |
2" |
51.3/51.9 |
56.5/57.1 |
95 |
25 |
|
SLDX280 |
2-1/2" |
63.0/63.6 |
70.2/70.8 |
140 |
15 |
|
SLDX290 |
3" |
78.0/78.7 |
85.2/85.9 |
150 |
10 |
|
SLDX200 |
4" |
101.6/102.6 |
108.5/109.5 |
190 |
10 |
|
CAT# |
CAT# |
Size |
Internal |
External |
Min. Bend |
Coil |
|
SLDX-PG7 |
SLDX-SS-PG7 |
PG7 |
9.2/9.5 |
12.6/12.9 |
30 |
50 |
|
SLDX-PG9 |
SLDX-SS-PG9 |
PG9 |
10.6/10.9 |
14.0/14.3 |
35 |
50 |
|
SLDX-PG11 |
SLDX-SS-PG11 |
PG11 |
13.6/13.9 |
16.8/17.1 |
38 |
50 |
|
SLDX-PG13 |
SLDX-SS-PG13 |
PG13 |
15.6/15.9 |
19.5/19.8 |
40 |
50 |
|
SLDX-PG16 |
SLDX-SS-PG16 |
PG16 |
17.3/17.6 |
21.4/21.7 |
45 |
50 |
|
SLDX-PG21 |
SLDX-SS-PG21 |
PG21 |
22.7/23.1 |
27.3/27.6 |
50 |
25 |
|
SLDX-PG29 |
SLDX-SS-PG29 |
PG29 |
30.8/31.2 |
35.9/36.2 |
58 |
25 |
|
SLDX-PG36 |
SLDX-SS-PG36 |
PG36 |
39.5/39.9 |
46/46.3 |
90 |
25 |
|
SLDX-PG48 |
SLDX-SS-PG48 |
PG48 |
51/51.5 |
57.4/57.8 |
100 |
25 |
◆ Steel flexible conduit offers high flexibility and mechanical strength where low level ingress protection is sufficient.
◆ Type SLDX-PG is widely used in dry, internal installations e.g. Underfloor wiring whereas
◆ Type SLDX-SS-PG is particularly suitable for wet or corrosive environment or severe temperature fluctuations
|
CAT# |
Size |
Internal |
External |
Min. Bend |
Coil |
Thickness of Band |
|
|
SLBR-U |
SEMT |
||||||
|
SLBR-U210 |
3/8" |
9.52/9.98 |
14.22/15.49 |
50 |
250 |
0.3x9.5 |
0.55x9.5 |
|
SLBR-U220 |
1/2" |
15.87/16.38 |
21.84/23.36 |
76 |
100 |
0.35x9.5 |
0.45x12.7 |
|
SLBR-U230 |
3/4" |
21.62/21.20 |
26.54/28.06 |
100 |
100 |
0.35x9.5 |
0.45x12.7 |
|
SLBR-U240 |
1" |
25.4/26.4 |
33.02/35.05 |
125 |
50 |
0.4x12.7 |
0.6x12.7 |
|
SLBR-U250 |
1-1/4" |
31.75/33.02 |
39.37/41.40 |
158 |
50 |
0.45x12.7 |
0.6x12.7 |
|
SLBR-U260 |
1-1/2" |
38.10/40.0 |
46.99/49.53 |
180 |
25 |
0.5x17 |
0.6x21.2 |
|
SLBR-U270 |
2" |
50.8/52.83 |
59.69/62.23 |
250 |
25 |
0.5x17 |
0.6x21.2 |
|
SLBR-U280 |
2-1/2" |
63.5/- |
72.64/77.72 |
320 |
25 |
0.6x21.2 |
0.6x21.2 |
|
SLBR-U290 |
3" |
76.2/- |
85.34/90.42 |
380 |
25 |
0.6x21.2 |
0.6x21.2 |
|
SLBR-U219 |
3-1/2" |
88.9/- |
98.04/103.12 |
450 |
25 |
0.6x21.2 |
0.6x21.2 |
|
SLBR-U200 |
4" |
101.6/- |
110.74/115.84 |
500 |
25 |
0.6x21.2 |
0.6x21.2 |
◆ Type SLBR-U is widely used in dry, internal installations e.g. Underfloor wiring whereas. Using thicker material which offershigher tensile strength.
◆ Fit for connectors of SL120 type
