Low Insertion Loss and High Return Loss FC APC 0.9mm Fiber
  • Low Insertion Loss and High Return Loss FC APC 0.9mm Fiber
Low Insertion Loss and High Return Loss FC APC 0.9mm Fiber

Low Insertion Loss and High Return Loss FC APC 0.9mm Fiber

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Ningbo, China (Mainland)
Product Description
Product Description

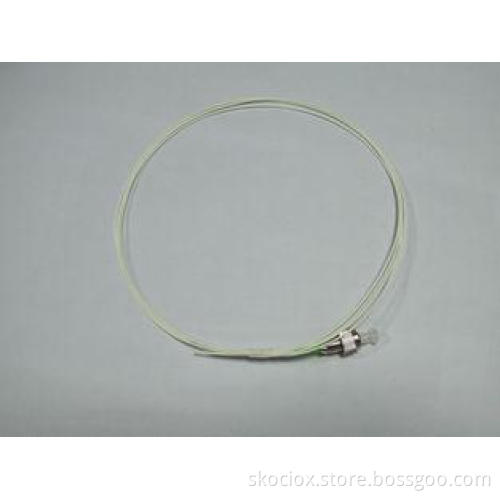

Low Insertion Loss and High Return Loss FC APC 0.9mm Fiber Optic Pigtail for Video Transmission , Data Transmission

Features:
Low insertion loss and high return loss
Good exchangeability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard

Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network


Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): < 0.2 (UPC) , < 0.3 (APC)
Return Loss (dB): > 50 (SM/UPC) , > 60 (SM/APC), 35(MM/UPC)
Exchangeability: < 0.2 dB
Tensile Strength: < 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: <50 um, <100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8degree �± 0.5 degree (APC)

Ordering Information:
FC/PC-SM- SX-3.0mm-1M

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: DX means Duplex / SX means Simplex
5. Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customize
