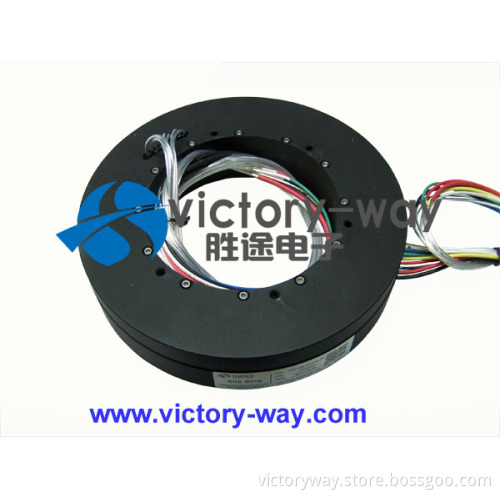

Pancake slipring with 110mm inner hole

When you have a height restriction, a "pancake" slip rings - also called a "flat" or "platter" ring - could be the best solution. These slip ring units are based on a disc shaped rotor, which is embedded with concentric grooves to carry the signal and power, with a brush block assembly mounted over the top to act as the stator. We can customize this type of slip ring from 4 to 50 channels,and any center bore size. Contacts use precious metals and operating speed depends on the number of channels and overall size of slip ring.
A.)Feature:
● Ultra-thin design,the thickness reaches 15 mm min;
● Center bore size can be customized;
● Multi circuits/channels design can deliver both power & signal data at the same time.
● No need to maintain.
B.)Specification:
Voltage : 240V AC/DC
Current Rating : 10A/Ring
Insulation Resistance : 1000MΩ@500VDC
Dielectric Strength : AC 600V@60Hz, 60S
Electrical Noise : 70 milliohms MAX @5rpm,50milliamps,6V DC
Contact Material : Precious metal
Lead Size/Type : 1.0mm2 Teflon wire
Operate Temp : -20℃~ +80℃
C.)Application:
● Rotary tables, test equipment;
● Robots,processing equipments and rotary sensors;
● Medical equipments;
● Radar System.
D.)Option:
● Higher voltage and current;
● Wider range of temperature;
● Higher protection class;
● Style of exits for lead wires;
● Flange for installation.
