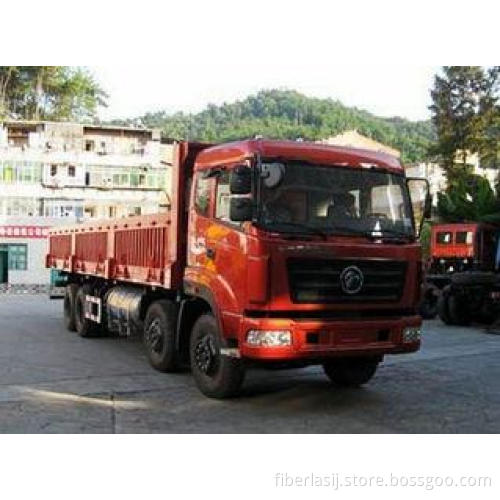

CNG Dongfeng 8x4 DFE3310VF2 Dump Truck
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Dongfeng DFE3310VF2 Dump Truck
Vehicle model | DFE3310VF2 | Manufacturer | Dongfeng Motor Company |
Engine model | YC6M340N-30 | Engine power | 250kw |
Displacement | 9839ml | Engine manufacturer | Guangxi Yulin Diesel Engine Co., Ltd Weichai Gas Engine Co., Ltd Weichai Gas Engine Co., Ltd |
Cabin seating | 1+2 | Fuel type | CNG |
Overall dimension | 12000x2500x3350mm | Box dimension | 9400x2300x905mm 9600x2300x905mm |
Max gross weight | 31000kg | Rated load weight | 16005kg |
Curb weight | 14800kg | Trailer load weight | 9900kg |
Approach/Departure angle | 19/13 | Front/Rear suspension | 1480/2770mm |
Wheelbase | 1950+4500+1300mm | Axle load weight | 6500/6500/18000kgx2 (double rear axles) |
Transmission type | 8x4 | Max speed | 90 |
Drive type | LHD | Spring leaf tablet | 9/9/9,12/12/13 |
Tire number | 12 | Tire size | 11.00-20,11.00R20 12.00-20,12.00R20 |
Front wheel track | 2040/2040mm | Rear wheel track | 1860/1860mm |
Steering type | Power steering | Emission level | Euro3 |
VIN | LGHXPSFXxxxxxxxxx | ||
