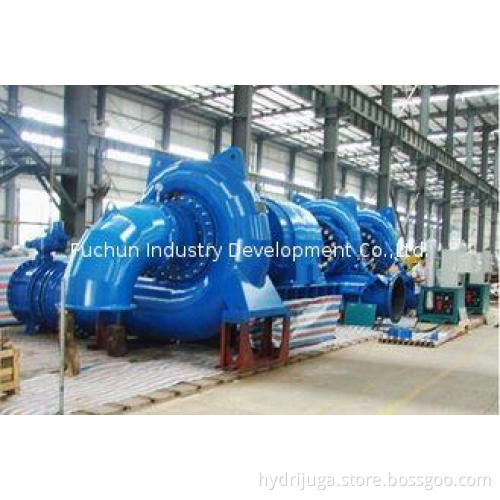

High Head Francis Hydro Turbine, Axial Flow Vertical & Horizontal Hydro Power Turbines

1. Water head: 10 to 300m
2. Power: 100kw-50Mw
3. Runner diameter: 0.35 to 4.0 m
4. Vertical and horizontal
5. CE Certificate


The Francis turbine is a type of water turbine that was developed by James B. Francis. It is an inward flow reaction turbine that combines radial and axial flow concepts. Francis turbines are the most common water turbine in use today.

The Francis type turbines are mostly suitable for hydro-power stations with medium or high head. The Francis type turbines manufactured by the Fuchun are compact in structure, reasonable in design, convenient in operation and maintenance and excellent in efficiency. They are in both vertical and horizontal shaft arrangement and can be vastly selected by the hydraulic power stations. with many years of our own experience and absorbing advanced technology from domestic and abroad sources, and in meeting ever growing requirements of stations for various hydraulic power resources, the manufacture and design level of Francis turbines made in Fuchun has been raised to new stages.
The Francis turbines manufactured by the Fuchun, are ranging from 10 to 300m in water head, 100kW to 50MW in capacity and 0.35 to 4.0 m in runner diameter.


Partial Reference of Data

Hydro turbine Generator Speed governor Type of Valve
Type Design Head(m) Design Flow(m 3 /s) Power (Kw) Rated Speed (r/min) Type Rated Power(Kw)

Rated Voltage

(v)

HL240-WJ-50

21.5 1.29 222 750 SFW200-8/740 200 400 SDT-300/ YWT-300 Z941H-6DN700
25.6 1.39 287 SFW250-8/850 250 400
29.5 1.61 365 SFW320-8/850 320 400
33.5 1.58 441 1000 SFW400-8/990 400 400
38.5 1.74 558 SFW500-6/990 500 400
HL240-WJ-60 23.5 1.94 361 600 SFW320-10/990 320 400

SDT-300/

YWT-300

Z941H-6DN900
26.5 2.08 441 SFW400-10/990 400 400
30.5 2.27 550 SFW500-10/990 500 400

HL240-WJ-71

24.5 2.71 537 500 SFW500-12/1180 500 400

YWT-600

Z941H-6DN1000
285 2.93 680 SFW630-12/1430 630 400
32.5 3.17 852 600 SFW800-10/1180 800 400
36.5 3.55 1087 SFW1000-10/1430 1000 400
42.5 3.75 1344 SFW1250-10/1430 1250 400

HL240-WJ-84

23.0 3.77 696 428.6 SFW630-14/1730 630 400 YWT-600 PDF40-WY-120
26.5 4.12 884 SFW800-14/1730 800 400
30.5 4.41 1090 500 SFW1000-12/1730 1000 400
34.5 4.77 1368

SFW1250-12/1730

1250 400

YWT-

1000

39.5 5.22 1720 SFW1600-12/1730 1600 400
