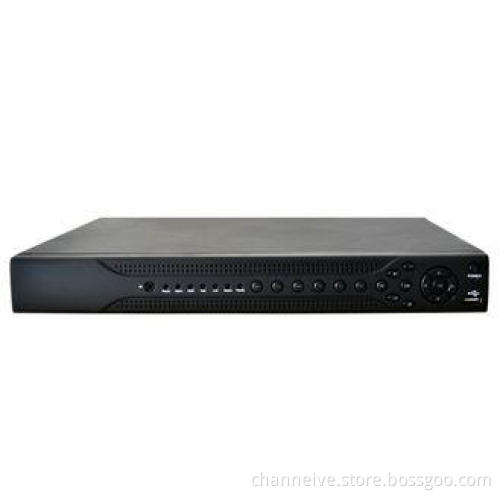

Custom H.264 High Profile HD SDI DVR With Embedded Linux
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Custom H.264 High Profile HD SDI DVR With Embedded Linux
Feature:
Ø With cloud service, easy to achieve a variety of network penetration ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
Ø H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology
Ø Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Ø Support various mobile monitoring(iPhone,Windows Mobile, BlackBerry,Symbian, Android),support 3G/wifi.
Ø Support IE,Chrome,Firefox,Safari browsers
Ø Support two USB2.0 ports, to achieve USB mouse, backup, burn, upgrades and other operations stably
Ø Imitate Vista interface, similar to Windows operating style, easy to get started with powerful mouse right-click function.
Ø Support TV, VGA and HDMI output simultaneously, VGA, HDMI full HD 1080P display output , overturn traditional monitoring thoroughly.
Ø Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
Ø With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Ø Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes.
Ø Support more than 20 languages(English,Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.),no nation boundaries.
Ø Display flexibly, free to replace boot interface.
|
|
Model |
NFYHfPW3-2240A001 (DVR6004DA-PL) |
NFYHfPW3-2240C002 (DVR6008DA-FL) |
|
System |
main processor |
Industrial embedded microcontroller Huawei Hass platform |
|
|
operating system |
embedded linux |
||
|
system resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
||
|
Interface |
user interface |
support 16-bit true color graphical menu interface and mouse operation |
|
|
preview screen |
1/4 |
1/4/8/9 |
|
|
Video |
vdieo standards |
SMPTE 292, PAL(625line,50f/s); NTSC(525line,60f/s) |
|
|
image encode |
H.264(High Profile); |
||
|
display quality |
Monitor:D1;VGA:high definition;HDMI:high definition |
||
|
playback quality |
1080P/720/D1/HD1/CIF/QCIF |
||
|
encode capacity |
4 channel 1080P real-time |
8 channel 720P real-time |
|
|
decode capacity |
1 channel 1080P real-time |
2 channel 720P real-time |
|
|
motion detect |
Zones: 396(22*18)detection zones,sensitivity: multi-level sensitivity (Only local channels) |
||
|
Audio |
audio compression |
G.711A |
|
|
bidrectional talk |
supported |
||
|
Interface |
record mode |
manual>alarm>motion detection>timing |
|
|
local playback |
1 channel |
1-2 channel |
|
|
search mode |
Time/calendar/event/channel search |
||
|
Storage & Backup |
space occupation |
video:QCIF 1.5~2.5 G/ day*channel, CIF 4~5G day*channel, D1 8~20G/ day*channel,
720P 20~30 G/ day*channel, audio:691.2M/ day*channel. |
|
|
record storage |
HDD&Network |
||
|
backup mode |
Network backup,USB HD, USB writer |
||
|
Interface |
video input |
4 channel HD-SDI |
8 channel HD-SDI |
|
video output |
1 channel BNC,1 channel VGA,1 channel HDMI |
||
|
audio input |
4 channel RCA |
8 channel RCA |
|
|
audio output |
1 channel RCA |
||
|
alarm input |
8 channel |
||
|
alarm output |
1 channel |
||
|
net interface |
RJ45 10M/100M |
||
|
PTZ control |
one RS485,one RS232, support multiple PTZ protocols |
||
|
usb |
2 USB ports |
||
|
hard disk |
2 SATA ports(MAX 2X3T per one) |
||
|
3G,WIFI |
support |
||
|
Others |
power supply |
12V/3A |
|
|
dimension |
350mm(length)* 295mm(width)* 45mm(height) |
||
