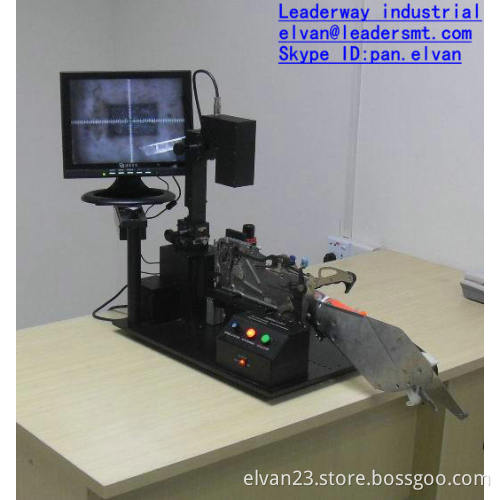

JUKI FEEDER calibration jig for smt pick and place machine

JUKI FEEDER calibration jig for smt pick and place machine

1, the whole lean, simple, functional optimization . And the use of high-precision 0 gap guide, to ensure positional stability , greatly improve work efficiency.

2 , accurate detection . Reclaimer position, height , strut height can be done accurately measured. To better grasp the quality status .



3 , the use of 12 ' color LED display, LED lighting ring , 50 times magnification CCD camera , making more compact structure, beautiful. Effectively reducing eye fatigue, improve quality of operations .



4 , easy to operate , and can simulate the placement machine , automatic continuous observation reclaimer position , a clearer grasp FEEDER continuous operation quality , and thus more effective control of polishing material rate .



5 , you can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG etc.



6, the functions and features : 1 , the precise XY axis adjustment ;

2 , the axis of the camera can be adjusted directly ;

3, built- 220V DC power supply ;

4 , black and white cross reference the cursor ;

5, automatic and step function ;

6 super bright LED display ;

7, the feeders precise control fixtures;


Uses : FEEDER calibrator for calibration of various models


Power supply : 220V


Compressed air requirements : 5kg/cm2


Dimensions: Length 500mm * Width 350mm * height 550mm

Product Specifications: 12-inch LCD monitor coming with 50 times pixel color CCD camera
