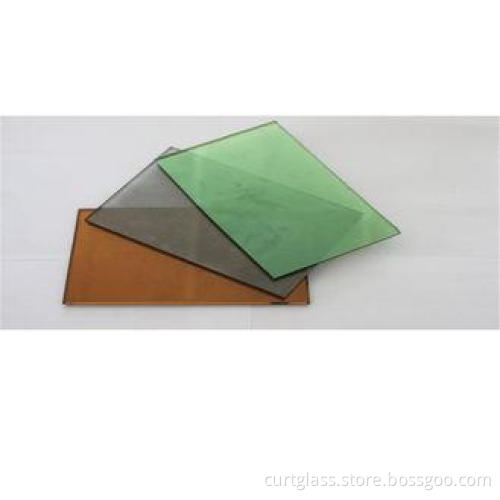

PVB Laminated Heat Reflective Glass , 5mm 6mm Colored Glass

PVB Laminated Heat Reflective Glass , 5mm 6mm Colored Glass Panels

Description:

1. People have higher requirements to building glass because the architectural esthetics is developing very fast nowadays. The building glass is not only required to have a good performance on the lighting function, but also required to be a good decoration with different kinds of colors.
2. In the hot summer, if you use normal clear glass, all of the heat from the sun will go inside the room without any resistance, This way the room will become a “hot island”. To resolve this problem, high-performance Heat Resistant coated glass is used.
3. Heat Resistant coated glass is also called solar control coated glass. Through the method of vacuum evaporative sputtering, we use some coating materials on the surface of high quality float glass to make the heat resistant glass. This way, the optical performance and color of the float glass is changed according to different kinds of requirements.
4. The laminated glass is one kind of safety made under high temperature by interlaying PVB membrane between glasses. It can be two sheets or more than two sheets.

Features:

1. To reflect the infrared ray from the sun
2. To protect the privacy of the inside building
3. Colorful
4. Energy consumption

Application:

1. Coating layer should be out ward, glass layer inward during installation
2. When single panel is applied, coating layer should be protected against scratch

Specification:

1. Thickness: 3-19mm

2. Standard large panel size: 2440*3600mm, 2440*3300mm, 2134*3300mm,

Max size: 2540*4500mm, Min size: 300*800mm

3. Film thickness: 0.38mm and multiple of 0.38mm

Quality:

In accordance with GB/T18915.1-2002 reflective Chinese National Standard

Pass Chinese Safety Glass Compulsory Certification (CCC).
