18W Jewelry Lighting, Round 8 inches LED Ceiling Lighting F
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

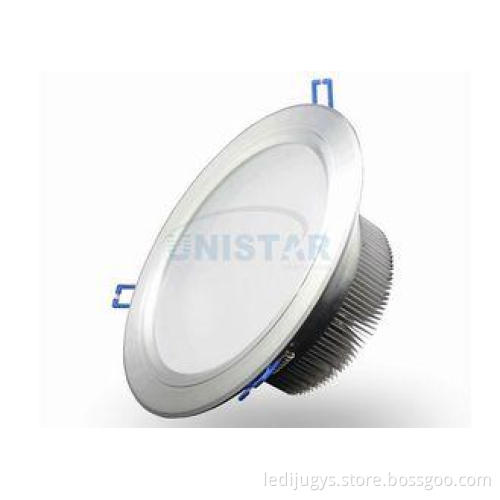

18W Jewelry Lighting, Round 8 inches LED Ceiling Lighting Fixture For Exhibition, Hotel, Office
18W Jewelry lighting, 8 inches, LED lighting fixture for exhibition, hotel, office etc.
Description:
- Cree/Edison/Epistar LED
- AC85~265V input options
- 18W power consumption
- (Cut-out) Installation Hole size Φ200mm
- Warm white Pure white Cool white
- 120°beam angle
- Equiv to 150W halogen lamp
- 3 Year Warranty
- CE RoHS TUV UL compliant
This ceiling light used of frosted glass which makes the light hazy and soft, protect people’s eyes, safe and long lifespan. Save more than 90% of power consumption without losing any brightness. Perfect for living room, hall, office, store, super market, hotel, etc
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Tech Date |
|
|
|
Model |
US-CL-P18X1W |
|
|
LED Qty |
18pcs |
|
|
LED Type |
Cree Edison Epistar |
|
|
LED Power |
18W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC85~265V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
80~110LM/W |
|
|
Dimension |
Φ235 x H92mm (8’’ Inches) |
|
|
Color Temperature |
WW |
2700-3500K |
|
PW |
4000-5500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>73 |
|
PW / CW |
Ra>78 |
|
|
Lumens Output |
WW |
1450lm |
|
PW |
1500lm |
|
|
CW |
1550lm |
|
|
Beam Angle |
120° |
|
|
(Cut-out)Hole size |
Φ200mm |
|
|
Working Temperature |
-40℃ ~ +55℃ |
|
|
Storage Temperature |
-25℃ ~ +65℃(25℃ best) |
|
|
Life span |
35000~50000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
Curve of light distribution & Lux distance(Ta=25℃±3℃)
Comparison of color temperature:
Diagram of degradation for Luminous:
Comparison of Lifetime:
|
|
Halogen Ceiling Light |
6000,hours lifetime |
Increase the |
|
|
LED Ceiling Light |
50000,hours lifetime |
long time with |
Installation Instruction:
Package:
Application:
1) Recessed lighting, shelf lighting, ceiling/wall coves
2) Cabinet and under counter lighting, office work station
3) Back lighting, step lighting, light boxes
4) Merchandising, exhibition stands, and panels
