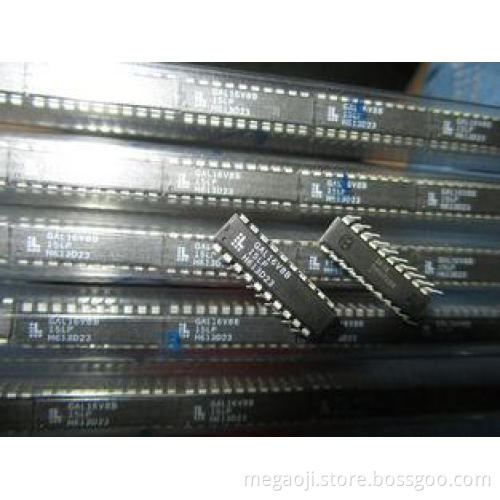

Integrated Circuit Chip GAL16V8B-15LP LATTICE High Performa
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | MALAYSIA |
|---|
Quick Detail:
LATTICE High Performance E2CMOS PLD Generic Array Logic
Description:
The GAL16V8C, at 5 ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. High speed erase times (<100ms) allow the devices to be reprogrammed quickly and efficiently.
Applications:
— DMA Control
— State Machine Control
— High Speed Graphics Processing
- Standard Logic Speed Upgrade
Specifications:
|
Datasheets |
GAL16V8 |
|
Product Change Notification |
Product Discontinuation 07/Sept/2010 |
|
Standard Package |
18 |
|
Category |
Integrated Circuits (ICs) |
|
Family |
Embedded - CPLDs (Complex Programmable Logic Devices) |
|
Series |
GAL®16V8 |
|
Packaging |
Tube |
|
Programmable Type |
EE PLD |
|
Delay Time tpd(1) Max |
15.0ns |
|
Voltage Supply - Internal |
4.75 V ~ 5.25 V |
|
Number of Logic Elements/Blocks |
- |
|
Number of Macrocells |
8 |
|
Number of Gates |
- |
|
Number of I /O |
- |
|
Operating Temperature |
0°C ~ 75°C |
|
Mounting Type |
Through Hole |
|
Package / Case |
20-DIP (0.300", 7.62mm) |
|
Supplier Device Package |
20-PDIP |
Competitive Advantage:
Warranty :180days for all goods
Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.
Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.
Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
Tag:
GAL16V8B-15LP GAL16V8B-15LPN
