0.5mm 316 Bright stainless steel wire , SS wire for coil
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

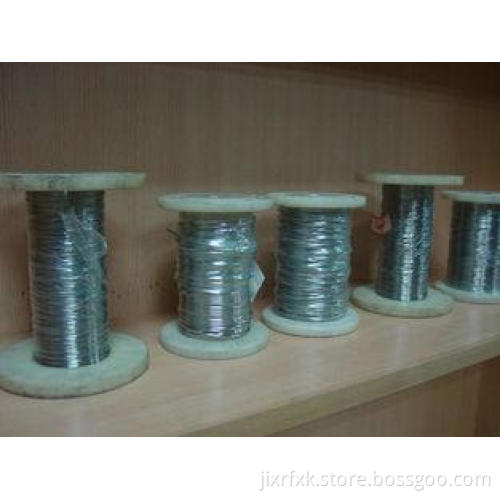

0.5mm 316 Bright stainless steel wire , SS wire for coil
Quick Detail:
Grade: 316
Standard: AISI,ASTM
Brand Name: Tianli
Model Number: AISI 316
Technique: Hot Rolled
Certification: SGS,ISO
surface: Polished
Description:
We offer stainless steel wire ranging from 0.018 to 0.9mm while we can accept special sizes.
Features of Stainless Steel Wire: High strength, excellent anti-corrosion property, good preventing and anti-radiating property.
Applications of Stainless Steel Wire: Airspace, military, medicine, chemical industry, petroleum chemical, etc.
Material: 304, 304L, 316, 316L
Diameter: 5mm to 0.025mm
Use: Wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.
Applications:
Weaving wire,Braiding wire,Annealing wire,redrawing wire,tie wire,Spring and so on
Specifications:
1) Grade: 201,202,301,303,304,304L,305,316,316L,321,410,416,420,430 etc
2) Standard: ASTM, EN,DIN,JIS
3) Diameter: 0.18-20mm
4) Surface: bright, cloudy,plain,black
5) Type: spring,welded,tig,mig etc
6) Packing: in coil or in spool then in carton or as your request
7) Delivery Detail: 15-20 days after we receive the 30% payment for goods
1,Chemical Component
|
GRADE |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
YP (Mpa) |
TS (Mpa) |
EL (%) |
|
|
MAX |
MAX |
MAX |
MAX |
MAX |
MAX |
|
|
MIN |
MIN |
MIN |
|
304 |
0.07 |
1 |
2 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
- |
205 |
515 |
40 |
2,Tensile strength
|
Diameter (mm) |
Tensile strength(Mpa) |
|
Diameter (mm) |
Tensile strength(Mpa) |
||||
|
|
Class B |
Class C |
Class D |
|
|
Class B |
Class C |
Class D |
|
0.50 |
1860~2260 |
2200~2600 |
2550~2940 |
|
1.80 |
1520~1810 |
1760~2110 |
2010~2300 |
|
0.55 |
1860~2210 |
2150~2550 |
2500~2890 |
|
2.00 |
1470~1760 |
1710~2010 |
1910~2200 |
|
0.60 |
1760~2160 |
2110~2500 |
2450~2840 |
|
2.20 |
1420~1710 |
1660~1960 |
1810~2110 |
|
0.63 |
1760~2160 |
2110~2500 |
2450~2840 |
|
2.50 |
1420~1710 |
1660~1960 |
1760~2060 |
|
0.70 |
1710~2110 |
2060~2450 |
2450~2840 |
|
2.80 |
1370~1670 |
1620~1910 |
1710~2010 |
|
0.80 |
1710~2060 |
2010~2400 |
2400~2840 |
|
3.00 |
1370~1670 |
1570~1860 |
1710~1960 |
|
0.90 |
1710~2060 |
2010~2350 |
2350~2750 |
|
3.20 |
1320~1620 |
1570~1860 |
1660~1910 |
|
1.00 |
1660~2010 |
1960~2300 |
2300~2690 |
|
3.50 |
1320~1620 |
1570~1860 |
1660~1910 |
|
1.20 |
1620~1960 |
1910~2250 |
2250~2550 |
|
4.00 |
1320~1620 |
1520~1760 |
1620~1860 |
|
1.40 |
1620~1910 |
1860~2210 |
2150~2450 |
|
4.50 |
1320~1570 |
1520~1760 |
1620~1860 |
|
1.60 |
1570~1860 |
1810~2160 |
2110~2400 |
|
5.00 |
1320~1570 |
1470~1710 |
1570~1810 |
Competitive Advantage:
1 Suitable for using making mattress spring
2 can be made into optical cable core and steel wire strand
3 we are standard maker
4 our annual output is over 20000MT
5 we have attained ISO9001 quality management system certification
and the ISO14001 quality environment system certification
6 we have more than 200 member staff
Tag:
316 Bright stainless steel wire/Shining ss wire/SS wire
