ASTM304 7x37 10mm Stainless Steel Wire Cable 1570 Mpa 1000
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
ASTM304 7x37 10mm Stainless Steel Wire Cable 1570 Mpa 1000 Meters
Quick Detail:
Grade : ASTM304
Structure : 7x37
Diameter : 10mm
Standard : DIN, GB, SUS, AISI, BS, ASTM, JIS etc
Tensile Strength : 1570 Mpa

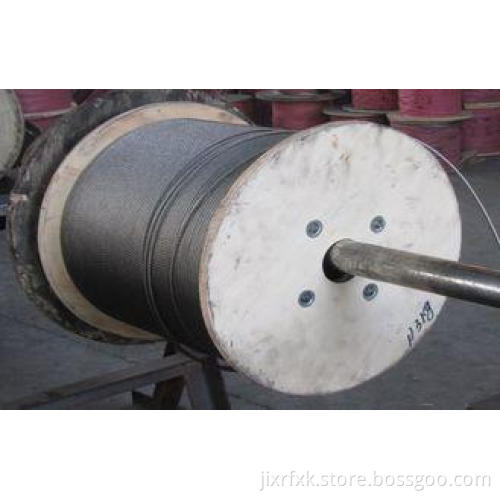

Packing : 1000 meters per plywood spool
Description
| Type | Stainless Steel Cable |
| Grade | ASTM304 |
| Diameter | 10 mm |
| Construction | 7x37 |
| Lay | LHOL LHLL RHOL RHLL |
| Core | Wire Strand Core |
| T/S | 1570 N/mm2 |
| Packing | wrapped with plywood spool,1000 meters per spool |
| Loading Port | Shanghai,China |
| Delivery Time | 15 days |
| MOQ | 1000 Meters |
| Certification | ISO SGS |
| Surface | Bright |
| Trade Terms | FOB C&F CIF EXW |
| Payment Term | T/T L/C West Union |
Applications:
With bright surface, slight magnetism and no cracks on forming, is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.
Competitive Advantage:
ISO 9001: 2008, SGS Registered as a manufacture of stainless steel wire rope.
Officer supplier of Chinese National High Speed Train(CRH train), National Grid.
Stainless Steel Wire Rope Supplier of the Nest in 2008 Beijing Olympic Games
Over 20 years manufacture and export experience
Our most popular products as following:
304 & 316 in 1x7,1x19,6x7,6x19, 6x36,6x37,7x7,7x19 construction, diameter from 0.15 to 100 mm.
Detail :
Loading & Export Image :
Chemical Composition:
| GRADE | C % | NI % | CR % | P % | S % | SI % | MN % | MO % |
| 304 | ≦0.08 | 8-10 | 17-19 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | _ |
| 316 | ≦0.08 | 10-14 | 16-18 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | 2-3 |
| 316L | ≦0.08 | 10-14 | 16-18 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | 2-3 |
