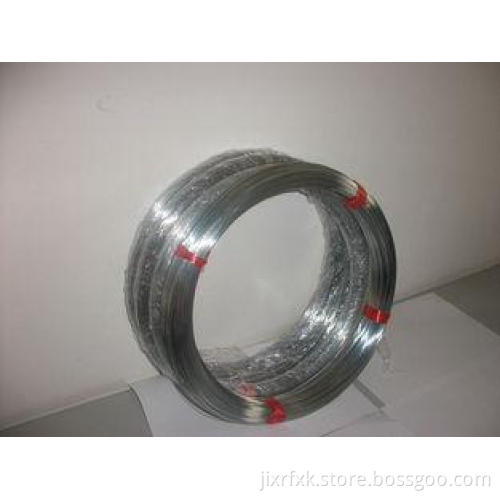

2 mm Cold Heading Galvanized Steel Wire , AISI / ASTM / BS / DIN / GB / JIS / ISO
Quick Detail:
Steel Grade: carbon steel
Standard: AISI,ASTM,BS,DIN,GB,JIS,ISO
Place of Origin: China (Mainland)
Type: steel wire
Surface Treatment: Galvanized
Application: Manufacturing
Alloy Or Not: Non-alloy
Special Use: Cold Heading Steel
Brand Name: Tianli
Description:
Galvanized Wires for ACSR, agricultural purposes, fencing and suspension ropes
1.Diameter range:0.3-3.0mm
2.Main application:making spring,mattress,wire rope.
3.Standard:GB4357,DIN17223,JIS G 3521
Hot-Dipped Galvanized steel wire
Zinc Coating:80-600g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa
Content of Carbon :0.40-0.85%
We can processing with customer's special specification produced.
Applications:
mining, loading, forestry and marine industries etc.
Specifications:
1) Min. tensile strength: 1,570MPa, 1,670MPa, 1,770MPa, 1,870MPa,1,960MPa
2) Diameter range: 0.5 - 36mm
3) Applications: mining, loading, forestry and marine industries
4) Standard : GB,BS,DIN,JIS,API ,EN,ASTM,etc.
5) Surface: galvanized (Electro& hot-dip)/ungalvanized , Coated PVC/PE/NYLOY steel wire rope etc.
6) Packing: packed in plastic spool, reel, bag, drum or carton, according to your requirements.
Tensile strength
|
Diameter (mm) |
Tensile strength(Mpa) |
|
Diameter (mm) |
Tensile strength(Mpa) |
||||
|
|
Class B |
Class C |
Class D |
|
|
Class B |
Class C |
Class D |
|
0.50 |
1860~2260 |
2200~2600 |
2550~2940 |
|
1.80 |
1520~1810 |
1760~2110 |
2010~2300 |
|
0.55 |
1860~2210 |
2150~2550 |
2500~2890 |
|
2.00 |
1470~1760 |
1710~2010 |
1910~2200 |
|
0.60 |
1760~2160 |
2110~2500 |
2450~2840 |
|
2.20 |
1420~1710 |
1660~1960 |
1810~2110 |
|
0.63 |
1760~2160 |
2110~2500 |
2450~2840 |
|
2.50 |
1420~1710 |
1660~1960 |
1760~2060 |
|
0.70 |
1710~2110 |
2060~2450 |
2450~2840 |
|
2.80 |
1370~1670 |
1620~1910 |
1710~2010 |
|
0.80 |
1710~2060 |
2010~2400 |
2400~2840 |
|
3.00 |
1370~1670 |
1570~1860 |
1710~1960 |
|
0.90 |
1710~2060 |
2010~2350 |
2350~2750 |
|
3.20 |
1320~1620 |
1570~1860 |
1660~1910 |
|
1.00 |
1660~2010 |
1960~2300 |
2300~2690 |
|
3.50 |
1320~1620 |
1570~1860 |
1660~1910 |
|
1.20 |
1620~1960 |
1910~2250 |
2250~2550 |
|
4.00 |
1320~1620 |
1520~1760 |
1620~1860 |
|
1.40 |
1620~1910 |
1860~2210 |
2150~2450 |
|
4.50 |
1320~1570 |
1520~1760 |
1620~1860 |
|
1.60 |
1570~1860 |
1810~2160 |
2110~2400 |
|
5.00 |
1320~1570 |
1470~1710 |
1570~1810 |
Competitive Advantage:
1 Suitable for using making mattress spring
2 can be made into optical cable core and steel wire strand
3 we are standard maker
4 our annual output is over 20000MT
5 we have attained ISO9001 quality management system certification and the ISO14001 quality environment system certification
6 we have more than 200 member staff
Tag:
high carbon steel wire;low carbon steel wire;carbon steel pipe
