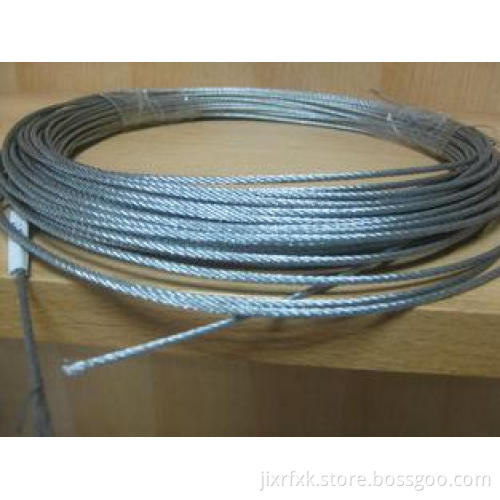

1.5mm 1x12 316 Stainless Steel Wire Rope Breaking Strength
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Made in China |
|---|
1.5mm 1x12 316 Stainless Steel Wire Rope Breaking Strength , 1570MPA - 1960MPA
Quick Detail:
Grade: 316 stainless steel wire rope
Structure: 1*12
Diameter: 1- 20mm
Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
Description:
Stainless steel wire rope:
1. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2. Diameter: from 0.15 mm to 50mm
3. T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4. Packing: Wooden box and bagging, or according to customers' request.
5. Delivery date: 30days after the order confirmation.
6. We have ISO and SGS certificates
Stainless steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.
Applications:
With bright surface, slight magnetism and no cracks on forming, is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.
Specifications:
GRADE | C % | NI % | CR % | P % | S % | SI % | MN % | MO % |
304 | ≦0.08 | 8-10 | 17-19 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | _ |
316 | ≦0.08 | 10-14 | 16-18 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | 2-3 |
316L | ≦0.08 | 10-14 | 16-18 | ≦0.035 | ≦0.03 | ≦1.0 | ≦2.0 | 2-3 |
Diameter (mm) | Min.Breaking Load (KN) | Approx.Weight (Kg/100m) | ||||||
1 | 105 | 0.49 | ||||||
1.2 | 150 | 0.70 | ||||||
1.4 | 200 | 0.95 | ||||||
1.5 | 230 | 1.09 | ||||||
1.6 | 250 | 1.24 | ||||||
1.8 | 310 | 1.56 | ||||||
Competitive Advantage:
- It features ultra-high corrosion resistance,
- surface quality, high brightness, strong corrosion resistance,
- tensile strength and fatigue strength.
- In particular, 316, and high corrosion resistance,
- 316 stainless steel wire rope widest range of uses,
- mainly for the food industry and surgical equipment.
