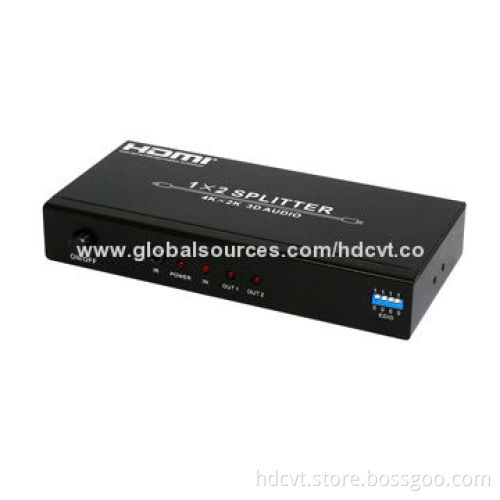

HDMI1.4 1x2 Splitter with EDID and Audio Extractor, Supports 3.5mm Phone Jack

HDMI1.4 1x2 Splitter with EDID and Audio Extractor, Supports 3.5mm Phone Jack

Get Latest Price

Payment Type:: T/T, L/C at Sight or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or PayPal

Product Description

Introduction:

This range of high-performance HDMI splitters provide one HDMI in to two HDMI output and supports 4 x 2K, 3D, 12-bit deep color as well as high-definition lossless audio
With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution
The splitter allows you to extract audio signals from your HDMI source, you can take your original HDMI audio signal and convert it to digital optical or analog stereo audio

Features:

Compliant with HDMI1.4, HDCP 1.2 and DVI 1.0
Supports HDMI audio sampling rate up to 192kHz
Supports optical S/PDIF audio sampling rate up to 192kHz
Supports TMDS clock frequency rate 300MHz
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports 3.5mm phone jack for analog stereo audio output
Supports built-in EDID control
Supports 4 x 2K resolution and 3D signal

Package contents:

HDMI splitter: 1 piece
5V/1A DC power adapter (1 x 2, 1 x 4): 1 piece
12V/2A DC power adapter (1 x 8): 1 piece
Operating user's manual: 1 piece
HDMI IR adapter (optional): 1 piece
Wideband IR Tx/Rx (optional): 1 piece

Specifications:

Video bandwidth: 300MHz/10.2Gbps
Input port: 1 x HDMI (female type)
Output ports: 2, 4, 8 x HDMI (female type), 1 x optical, 1 x 3.5mm phone
Output resolution: 480i to 1,080 pixels 50/60Hz, 4 x 2K at 24/30, VGA to UXGA
HDMI cable input: 1,080 pixels/12-bit (15m)
HDMI cable output: 1,080 pixels/12-bit (15m)
ESD protection human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
Power supply: 5V DC/1A (1 x 2, 1x 4), 12V DC/2.5A (1 x 8)
Dimensions (W x D x H): 70 x 145 x 25mm (1 x 2), 82 x 190 x 26mm (1 x 4), 118 x 250 x 32mm (1 x 8)
