Introduction:

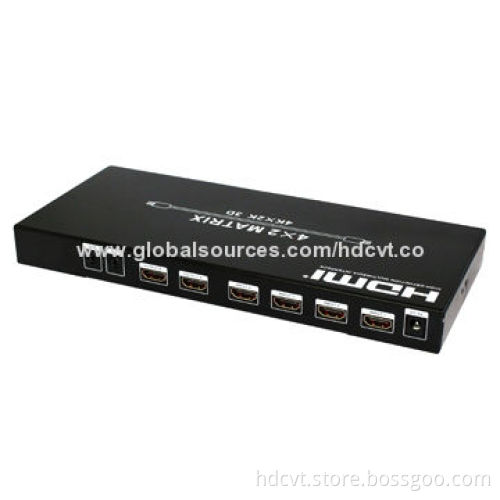

This is a high-performance HDMI Matrix with four HDMI input and two output, it allows any source (Blu-ray, HD DVD players, satellite receiver, game system and more) to be shown on the any of the two displays simultaneously, and supports 4x2K, 3D, 12-bit deep color
With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution

Features:

Supports multiplexed HDMI 4-input and 2-output
HDMI V1.4 supports: 4 x 2K at 30Hz,1 ,080P at 120Hz and 1,080P 3D at 60Hz
Deep color supports 48/36/30/24-bit
Support digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
Super wideband IR control system, IR transport channel can be forward or backward

Package contents:

HDMI matrix: 1 piece
5V/1A DC power adapter: 1 piece
Remote control: 1 piece
Operating user's manual: 1 piece
38KHz IR receiver: 1 piece
HDMI IR adapters (option): 4 pieces
Wide bands IR Tx (option): 2 pieces
Wide bands IR Rx (option): 4 pieces

Specifications:

Video bandwidth: 297MHz/2.97Gbps
Input ports: 4 x HDMI (female type)
Output ports: 2 x HDMI (female type)
Output resolution: 480i-1,080 pixels 50/60Hz, 4x2K at 24/30, VGA-UXGA
HDMI cable In: 1,080 pixels/12-bit (15m)
HDMI cable out: 1,080 pixels/12-bit (15m)
ESD protection human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Power supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (W x D x H): 113 x 260 x 26mm
Weight: 750g
Chassis material: metal
Silkscreen color: black
Operating temperature: 0-40°C/32-104°F
Storage temperature: −20-60°C/−4-140°F
Relative humidity: 20-90% RH (non-condensing)
Power consumption: 2.5W
