HDMI Matrix, 4x2 1080P 3D 4K x 2K TV 4 by 2 with EDID Control 5V/1A

HDMI Matrix, 4x2 1080P 3D 4K x 2K TV 4 by 2 with EDID Control 5V/1A

Get Latest Price

Payment Type:: T/T, L/C at Sight or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or PayPal

Product Description

Introduction:

This is a high performance HDMI Matrix with four HDMI inputs & two outputs, it allows any source (blue-ray player, HD DVD player, satellite receiver, game system and more) to be shown on the any of the two displays simultaneously, and supports 4K×2K, 3D, 12-bit deep color
With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution

Feature:

Supports multiplexed HDMI 4-input and 2-output
HDMI v1.4 supports: 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
Deep color support 48/36/30/24-bit
Support digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD

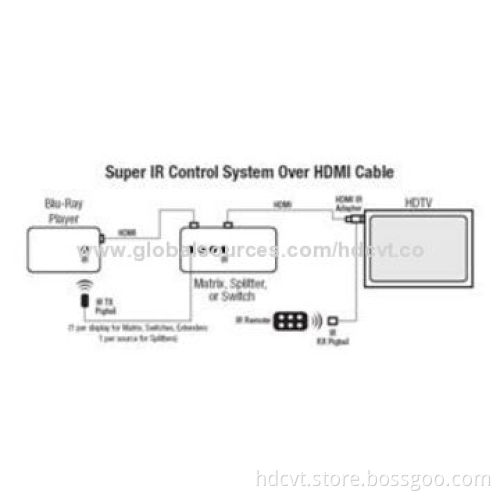

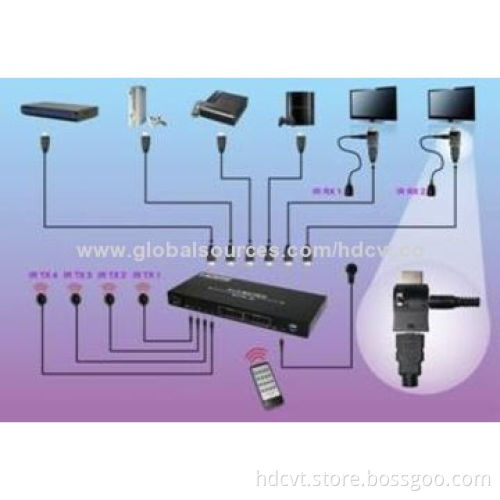

Super wideband IR control system, IR transport channel can be forward or backward

Package contents:

HDMI matrix: 1pcs
5V/1A DC power adaptor :1pcs
Remote control: 1pcs
Operation manual: 1pcs
38KHz IR receiver: 1pcs
HDMI IR adaptor(option): 4pcs
Wideband IR Tx(option): 2pcs
Wideband IR Rx(option): 4pcs

Specifications:

Video bandwidth: 297MHz/2.97 Gbps
Input ports: 4 × HDMI (female type)
Output ports: 2 × HDMI (female type)
Output resolution : 480i-1080p50/60, 4Kx2K@24/30, VGA-UXGA
HDMI cable In: 1080p/12bits (15m)
HDMI cable out: 1080p/12bits (15m)
ESD protection human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Power supply: 5 V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 113 mm (W) × 260 mm (D) × 26 mm (H)
Weight: 750 g
Chassis material: Metal
Silkscreen color: Black
Operating temperature: 0 °C-40 °C/ 32 °F-104 °F
Storage temperature: −20 °C-60 °C/−4 °F-140 °F
Relative humidity: 20-90 % RH (non-condensing)
Power consumption: 2.5 W

This is a high performance HDMI Matrix with four HDMI inputs & two outputs, it allows any source (blue-ray player, HD DVD player, satellite receiver, game system and more) to be shown on the any of the two displays simultaneously, and supports 4K×2K, 3D, 12-bit deep color

With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution

Supports multiplexed HDMI 4-input and 2-output

HDMI v1.4 supports: 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

Deep color support 48/36/30/24-bit

Support digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD

Super wideband IR control system, IR transport channel can be forward or backward

HDMI matrix: 1pcs

5V/1A DC power adaptor :1pcs

Remote control: 1pcs

Operation manual: 1pcs

38KHz IR receiver: 1pcs

HDMI IR adaptor(option): 4pcs
