HDMI Extender, Over Single 50m/164ft UTP Cables with IR Control

HDMI Extender, Over Single 50m/164ft UTP Cables with IR Control

Get Latest Price

Payment Type:: T/T, L/C at Sight or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or PayPal

Product Description

Introduction:

The HDMI extender over 1 UTP cables with IR control is the right way to send your HDMI signal over long distances
Instead of using expensive HDMI cables, this device lets you use your existing Cat5e/6 cables/sockets while also performing the same functions like transferring HDMI video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, all with a bandwidth up to 165MHz
And if that weren’t enough, you can use your existing remote to control your device through an IR blaster

Features:

Compliant with HDMI 1.3, HDCP 1.1 and DVI1.0 standards
Supports digital video formats in 1080p and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio
Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality
Supports HDMI1.4 with 3D, ARC function
Super IR control system, IR transport channel can be forward or backward
Support HDMI loop out

Package contents:

HDMI transmitter 1pc
HDMI receiver 1pc
5V/1A DC power adapter 2pcs
Operation manual 1pc
Wideband IR Tx 2pc
Wideband IR Rx 2pc

Specifications:

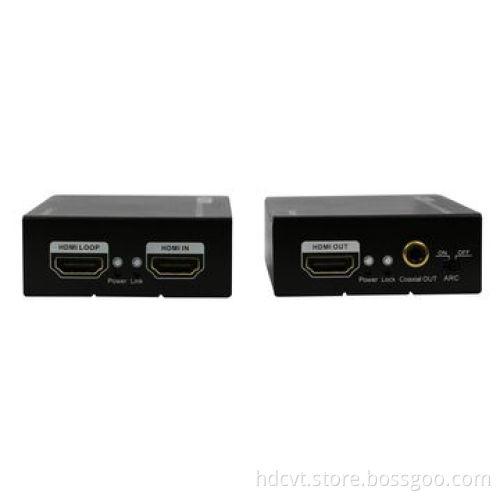

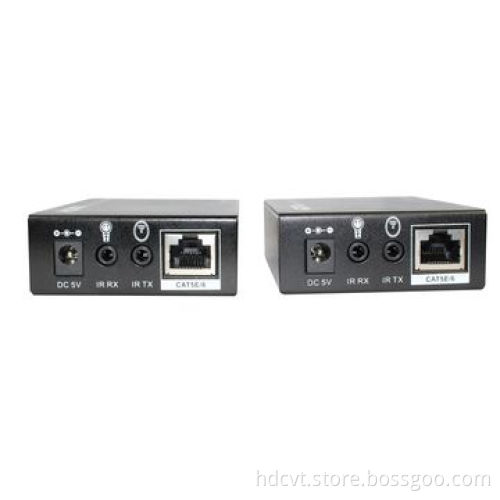

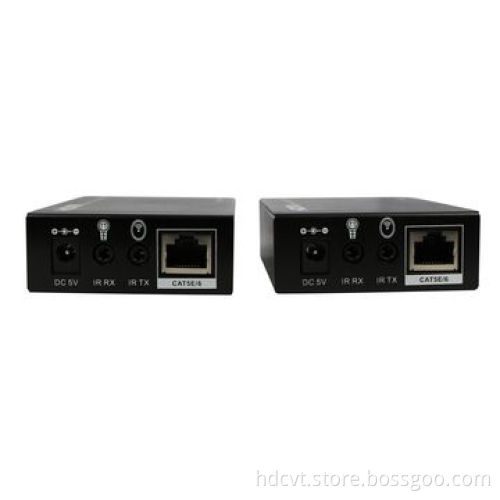

Transmitter ports: 2 x HDMI (Female type), 1x Cat5e/6, 2x3.5mm phone
Receiver ports: 1x HDMI (Female type), 1xRCA, 1x Cat5e/6, 2x3.5mm phone
Support resolution: 480i - 1080p50/60, VGA-UXGA
ESD protection: human body model: ±8kV (air-gap discharge) ±4 kV (contact discharge)
Power supply: 5V/1A DC
Dimensions: 65m

The HDMI extender over 1 UTP cables with IR control is the right way to send your HDMI signal over long distances

Instead of using expensive HDMI cables, this device lets you use your existing Cat5e/6 cables/sockets while also performing the same functions like transferring HDMI video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, all with a bandwidth up to 165MHz

And if that weren’t enough, you can use your existing remote to control your device through an IR blaster

Compliant with HDMI 1.3, HDCP 1.1 and DVI1.0 standards

Supports digital video formats in 1080p and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio

Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality

Supports HDMI1.4 with 3D, ARC function

Super IR control system, IR transport channel can be forward or backward

Support HDMI loop out

HDMI transmitter 1pc

HDMI receiver 1pc

5V/1A DC power adapter 2pcs

Operation manual 1pc

Wideband IR Tx 2pc
